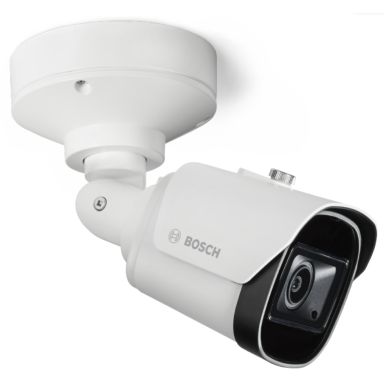

Bosch DINION 3100i IR Bullet IP security camera Outdoor 1920 x 1080 pixels Ceiling

Infrared (IR) cut-off filter

Yes

Type

IP security camera

Connectivity technology

Wired

Placement supported

Outdoor

Day/night mode

Yes

Country of origin

Thailand

IK code

IK10

Form factor

Bullet

Product colour

White

Mounting type

Ceiling

International Protection (IP) code

IP66

Housing material

Plastic, Metal

Minimum illumination

0.01 lx

White balance

Sodium lamp

Camera shutter type

Electronic

Camera shutter speed

1/25 - 1/15000 s

Lens viewing angle, horizontal

16 - 31°

Lens viewing angle, vertical

55 - 18°

Number of Privacy masking areas

8

Sensor type

CMOS

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Number of sensors

1

Signal-to-Noise Ratio (SNR) (panoramic camera)

55 dB

Number of lenses

1

Maximum aperture number

1.6

Detect distance

138 m

Observe distance

55 m

Recognize distance

28 m

Identify distance

14 m

Zoom capability

Yes

Focal length range

3.3 - 10.2 mm

Night vision

Yes

Night vision distance

30 m

LED type

IR

Infra-red wavelength

850 nm

Image quality adjustment

HDR, Sharpness, Saturation, Brightness

Flip & mirror

Yes

Back Light Compensation (BLC)

Yes

Maximum resolution

1920 x 1080 pixels

Video formats supported

H.264, M-JPEG, H.265, HEVC

Supported graphics resolutions

1920 x 1080 (HD 1080), 512 x 288

Frame rate

30 fps

Video streaming

Yes

Total megapixels

2 MP

Video intelligence analytic

Yes

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.3af, IEEE 802.3at

Quality of Service (QoS) support

Yes

Streaming method

Multicast

Ethernet LAN

Yes

Supported network protocols

IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSDP); DiffServ (QoS); LLDP; SOAP; CHAP; Digest authentication

Maximum memory card size

2 TB

Card reader integrated

Yes

Compatible memory cards

MicroSDHC, MicroSDXC

Flash memory

8192 MB

RAM capacity

1024 MB

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Privacy protection

Yes

Intelligent Video Surveillance (IVS) system features

Line crossing detection, Region entrance detection, Region exiting detection

Security algorithms

TLS, 256-bit AES, 128-bit AES, SHA-256, MD5, SHA-1, 4096-bit RSA

HTTPS encryption

Yes

Active tampering alarm

Yes

Digital watermark

Yes

Pixel counter

Yes

Human and vehicle targets classification

Yes

Power source type

PoE

Power consumption (max)

6.7 W

Power consumption (typical)

2.6 W

Operating temperature (T-T)

-30 - 50 °C

Storage temperature (T-T)

-50 - 70 °C

Operating relative humidity (H-H)

5 - 100%

Storage relative humidity (H-H)

5 - 95%

Width

122.5 mm

Depth

241.4 mm

Height

122.5 mm

Weight

1.39 kg

Compliance certificates

RoHS, WEEE, CE, UL, UKCA

Number of cameras

1

Iris

Yes

Doesn't contain

PVC

Compliance certificates

RoHS, WEEE, CE, UL, UKCA

Doesn't contain

PVC
