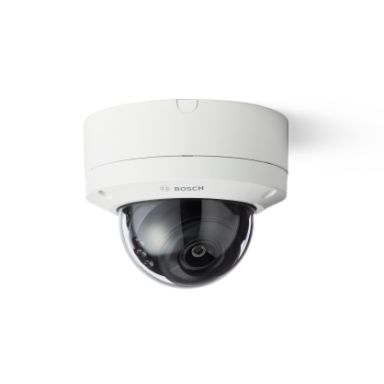

Bosch NDE-3703-AL security camera Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling

Infrared (IR) cut-off filter

Yes

Type

IP security camera

Connectivity technology

Wired

Placement supported

Indoor & outdoor

Day/night mode

Yes

Dynamic range

120 dB

Country of origin

Thailand

IK code

IK10

Form factor

Dome

Product colour

White

Mounting type

Ceiling

International Protection (IP) code

IP66

Housing material

Aluminium, Polycarbonate (PC)

Tilt angle range

0 - 85°

Pan range

0 - 355°

White balance

Manual, Sodium lamp

Angle of rotation

355°

Camera shutter type

Electronic

Camera shutter speed

1/15000 - 1/25 s

Lens viewing angle, horizontal

101.4 - 30.1°

Lens viewing angle, vertical

69.6 - 21.8°

Number of Privacy masking areas

8

Sensor type

CMOS

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Number of sensors

1

Number of lenses

1

Maximum aperture number

3.29

Minimum aperture number

1.6

Zoom capability

Yes

Focal length range

3.3 - 10.2 mm

Night vision

Yes

Night vision distance

30 m

LED type

IR

Infra-red wavelength

850 nm

Image quality adjustment

Brightness, Mirror, Sharpness

Back Light Compensation (BLC)

Yes

Video compression formats

H.264, H.265, HEVC, M-JPEG

Maximum resolution

2592 x 1944 pixels

Supported graphics resolutions

320 x 240, 512 x 288, 2592 x 1456, 2592 x 1944

Frame rate

30 fps

Video streaming

Yes

Total megapixels

5 MP

Signal-to-Noise Ratio (SNR)

55 dB

Bluetooth

No

Ethernet interface type

Fast Ethernet

Ethernet LAN

Yes

Wi-Fi

No

Supported network protocols

IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSDP); DiffServ (QoS); LLDP; SOAP; CHAP; Digest authentication

Maximum memory card size

2 TB

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

BNC output ports

1

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Privacy protection

Yes

Security algorithms

128-bit AES, 256-bit AES, 256-bit AES-CBC, 4096-bit RSA, MD5, SHA-256, TLS

Mirror

Yes

Digital watermark

Yes

Pixel counter

Yes

Power source type

PoE

Power consumption (max)

7.9 W

Power consumption (typical)

4.5 W

Operating temperature (T-T)

-30 - 50 °C

Storage temperature (T-T)

-50 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Height

111 mm

Diameter

13.7 cm

Weight

789.5 g

Number of cameras

1

Doesn't contain

PVC

Video compression formats

H.264, H.265, HEVC, M-JPEG

Doesn't contain

PVC
