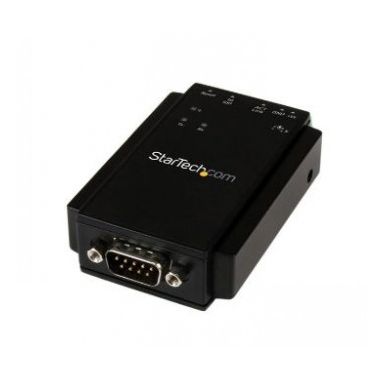

StarTech.com 1-Port Serial-to-IP Ethernet Device Server - RS232 - DIN Rail Mountable
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Technical details | |
|---|---|
| Stop bits | 1-1.5-2 |
| Flow Control type | N- RTS/CTS |
| Data bits | 5-6-7-8 |
| Auto MDI/MDI-X | Yes |
| Package width | 159 mm |
| Package height | 76 mm |
| Surge protection voltage | 15 kV |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Baud rate | 230.4 Kbit/s |
| Remote management | Yes |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Weight & dimensions | |
| Package weight | 444 g |
| Package width | 159 mm |
| Package height | 76 mm |
| Weight | 68 g |
| Dimensions (WxDxH) | 55 x 95 x 22 mm |
| Power | |
| Output voltage | 12 V |
| Output current | 1.2 A |
| Power plug type | Type H |
| Compatible power plug types | AU-EU-UK-US |
| Input current | 0.5 A |
| Input voltage | 100 - 240 V |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Certificates | |
| Certification | CE- FCC- TAA- PSE- REACH |
| Indication | |
| LED indicators | Activity- Link- Power |
| Power LED | Yes |
| Link/Act LED | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Design | |
| Housing material | Plastic |
| Product colour | Black |
