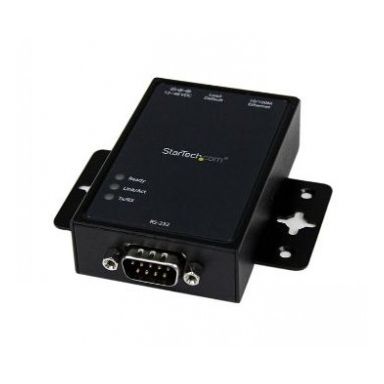

StarTech.com 1-Port Serial-to-IP Ethernet Device Server - RS232 - DIN Rail and Surface Mountable - Aluminum

Stop bits

1-1.5-2

Flow Control type

N- RTS/CTS

Data bits

5-6-7-8

Package width

146 mm

Package length

17.6 cm

Package height

62 mm

Serial ports quantity

1

Serial interface type

RS-232

RS-232 signals

Rx-Tx

Networking standards

IEEE 802.3u

Flow control support

Yes

Ethernet LAN data rates

10-100 Mbit/s

Baud rate

460.8 Kbit/s

Parity bit

Even- N- Odd

Sustainability certificates

RoHS

Ethernet LAN (RJ-45) ports

1

Cabling technology

10/100Base-T(X)

Package weight

416 g

Package width

146 mm

Package length

17.6 cm

Package height

62 mm

Weight

92 g

Dimensions (WxDxH)

53 x 86 x 23 mm

Output voltage

12 V

Output current

1.6 A

Power plug type

Type M

Compatible power plug types

AU-EU-UK-US

Power consumption

360 mA

Input voltage

100 - 240 V

Storage temperature (T-T)

-10 - 70 °C

Operating temperature (T-T)

0 - 60 °C

Operating relative humidity (H-H)

0 - 90%

Supported network protocols

DHCP- TCP/IP- UDP- HTTP- ICMP- ARP- Telnet

Certification

CE- FCC- TAA- REACH

LED indicators

Activity- Link- Ready

Link/Act LED

Yes

Windows operating systems supported

Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 2000-Windows 2000 Professional-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64-Windows Vista Business-Windows Vista Business x64-Windows Vista Enterprise-Windows Vista Enterprise x64-Windows Vista Home Basic-Windows Vista Home Basic x64-Windows Vista Home Premium-Windows Vista Home Premium x64-Windows Vista Ultimate-Windows Vista Ultimate x64-Windows Vista x64-Windows XP-Windows XP Home-Windows XP Home x64-Windows XP Professional-Windows XP Professional x64

Server operating systems supported

Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019

User guide

Yes

AC adapter included

Yes

Housing material

Aluminium

Product colour

Black

Certification

CE- FCC- TAA- REACH
