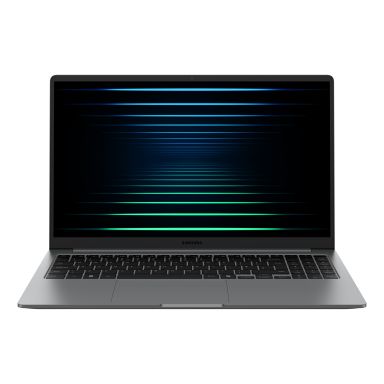

Samsung Galaxy Book5 (15.6", Core Ultra 5, 8GB)

Product type

Laptop

Form factor

Clamshell

Product colour

Grey

HD type

Full HD

Panel type

IPS

Touchscreen

No

Display resolution

1920 x 1080 pixels

Display diagonal

39.6 cm (15.6")

Anti-glare screen

Yes

Processor generation

Intel Core Ultra (Series 2)

Processor cache type

Last Level Cache

Processor cache

12 MB

Processor model

225U

Processor boost frequency

4.8 GHz

Processor cores

12

Processor threads

14

Processor manufacturer

Intel

Processor family

Intel Core Ultra 5

Processor base power

15 W

Maximum turbo power

57 W

Efficient-core base frequency

1.3 GHz

Performance-core base frequency

1.5 GHz

Efficient-core Max Turbo Frequency

3.8 GHz

Performance-core Max Turbo Frequency

4.8 GHz

Performance cores

2

Efficient cores

8

Low Power Efficient-core Base Frequency

700 MHz

Low Power Efficient-core Max Turbo Frequency

2.4 GHz

Low Power Efficient-cores

2

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML, ONNX RT, OpenVINO, Windows ML

NPU performance up to

12 TOPs

Memory form factor

On-board

Internal memory

8 GB

Internal memory type

LPDDR5x-SDRAM

Storage media

SSD

Optical drive type

No

Number of SSDs installed

1

SSD capacity

256 GB

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash)

Total storage capacity

256 GB

Total SSDs capacity

256 GB

NVMe

Yes

Graphics card Open GL support

Yes

Discrete graphics card

No

On-board graphics card OpenGL version

4.6

On-board graphics card DirectX version

12.2

On-board graphics card 4K support

Yes

On-board graphics card

Yes

On-board graphics card model

Intel Graphics

Discrete graphics card model

Not available

Graphics card Open GL support

Yes

On-board graphics card 6K support

Yes

On-board GPU manufacturer

Intel

On-board graphics card 8K support

Yes

Number of microphones

2

Audio system

Dolby Atmos

Number of built-in speakers

2

Speaker power

2 W

Built-in microphone

Yes

Front camera

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Optical drive type

No

Mobile network connection

No

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Bluetooth

Yes

Bluetooth version

5.2

Antenna type

2x2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

Combo headphone/mic port

Yes

Island-style keyboard

Yes

Pointing device

Clickpad

Keyboard layout

QWERTY

Numeric keypad

Yes

Keyboard language

English

Bundled software

Galaxy Book Experience Multi Control Second Screen Samsung Notes Samsung Gallery Quick Share Samsung Account Samsung Settings AI Select SmartThings Quick Search Samsung Device Care Enregistreur d’écran Fond d’écran animé (Live Wallpaper) Bixby Samsung Find Samsung Flow Samsung Studio Phone Galaxy Book Smart Switch Samsung Pass

Operating system installed

Windows 11 Home

Form factor

Clamshell

Product colour

Grey

Intel® OS Guard

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel® Secure Key

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Supported instruction sets

AVX 2.0, SSE4.1, SSE4.2

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

CPU configuration (max)

1

Intel Virtualization Technology (VT-x)

Yes

Battery life (max)

19 h

Battery capacity

61.2 Wh

AC adapter power

45 W

Cable lock slot type

Kensington

Trusted Platform Module (TPM)

Yes

Fingerprint reader

No

Cable lock slot

Yes

Width

356.6 mm

Depth

228 mm

Height

15.1 mm

Weight

1.55 kg

Package width

476 mm

Package height

53 mm

Package depth

279 mm

AC adapter included

Yes

AC adapter included

Yes

On-board graphics card

Yes

Audio system

Dolby Atmos

AC adapter included

Yes

Anti-glare screen

Yes
