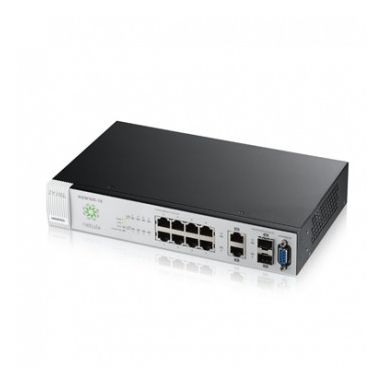

Zyxel NSW100-10-GB0101F Managed L2 Gigabit Ethernet
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
Networking standards
IEEE 802.1D-IEEE 802.1Q-IEEE 802.1p-IEEE 802.1w-IEEE 802.1x-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3af-IEEE 802.3at-IEEE 802.3az-IEEE 802.3u-IEEE 802.3z
VLAN support
Yes
Port mirroring
Yes
Virtual LAN features
Port-based VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Port-based VLAN
Performance
Packet buffer memory
1.5 MB
Stackable
Yes
Noise level
37.7 dB
Mean time between failures (MTBF)
1382030 h
Technical details
Product colour
Black
Stackable
Yes
Noise level
37.7 dB
Mean time between failures (MTBF)
1382030 h
Rack mounting
Yes
Data transmission
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
20 Gbit/s
Number of queues
8
Security
Authentication
Guest VLAN
SSH/SSL support
Yes
Security algorithms
SNMP
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client
Multicast features
Multicast support
Yes
Memory
Packet buffer memory
1.5 MB
Design
Product colour
Black
Stackable
Yes
Rack mounting
Yes
Power
Power consumption (max)
12.3 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
41.943 BTU/h
Weight & dimensions
Width
250 mm
Depth
150 mm
Height
44 mm
Weight
1.34 kg
Packaging data
Wall mounting kit
Yes
Package type
Box
Rack mount kit
Yes
Package width
366 mm
Package depth
214 mm
Package height
79 mm
Package weight
2.95 kg
Cables included
AC
Packaging content
Wall mounting kit
Yes
Rack mount kit
Yes
Cables included
AC
Zyxel NSW100-10-GB0101F Managed L2 Gigabit Ethernet
| Length | 15.00 cm |
| Width | 25.00 cm |
| Height | 4.40 cm |
| Weight | 1.340000 kgs |
