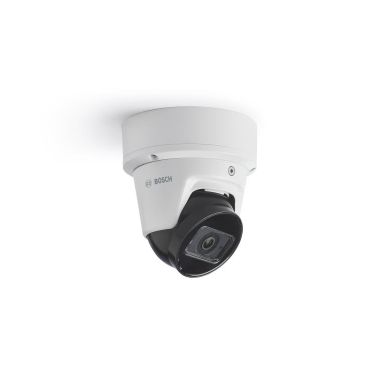

Bosch FLEXIDOME IP turret 3000i IR Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling/wall
In Stock
|
Call For Price
(0808 189 1246)
Performance
Infrared (IR) cut-off filter
Yes
Type
IP security camera
Connectivity technology
Wired
Placement supported
Outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
Certification
EN 55032- CFR 47 FCC 15- B- AS/NZS CISPR 32 EN 50130-4- EN 50121-4 EN 50130-5 (IV); EN 60068-2-1- EN 60068-2-2- EN 60068-2-6- EN 60068-2-18- EN 60068-2-27- EN 60068-2-30- EN 60068-2-52- EN 60068-2-75- EN 60068-2-78- EN 60068-2-5 EN 62368-1 EN 60950-22 UL 62368-1 UL 60950-22 IEC 62471 (IR) CAN/CSA-C22.2 No. 60950-1 CAN/CSA-C22.2 No. 60950-22-07 IEC 62676-5 ITU-R BT.709-6 EN 50132-5-2 EN 62676-2 EN 62262 EN 60529 EN 50581 CE- FCC- cULus- WEEE- RCM- VCCI- EAC- CMIM
Design
IK code
IK10
Form factor
Dome
Product colour
White
Mounting type
Ceiling/wall
Protection features
Impact resistant
International Protection (IP) code
IP66
Housing material
Polycarbonate (PC)
Camera
Adjustment shutter speed
Auto/Manual
Field of view (FOV) angle
100°
Tilt angle range
0 - 78°
Pan range
0 - 350°
White balance
Auto- Manual
Angle of rotation
270°
Camera shutter type
Electronic
Camera shutter speed
1/25[30] - 1/15000 s
Camera pan control
Yes
Camera tilt control
Yes
Image sensor
Number of effective pixels (H x V)
1920 x 1080 pixels
Sensor type
CMOS
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Number of sensors
1
Lens system
Number of lenses
1
Night vision
Night vision
Yes
Night vision distance
15 m
LED type
IR
Number of illumination LEDs
2
Infra-red wavelength
850 nm
Video
Noise reduction
Yes
Image quality adjustment
Brightness- Contrast- Saturation- Sharpness
Privacy masking
Yes
Back Light Compensation (BLC)
Yes
Video compression formats
H.264- M-JPEG- H.265- HEVC
Maximum resolution
1920 x 1080 pixels
Supported graphics resolutions
1920 x 1080 (HD 1080)- 1280 x 720 (HD 720)- 768 x 432- 640 x 480 (VGA)- 720 x 480
Supported video modes
720p- 1080p
Frame rate
30 fps
Video streaming
Yes
Total megapixels
2 MP
Audio
Voice codecs
AAC- G.711
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3af- IEEE 802.3at
Quality of Service (QoS) support
Yes
Ethernet LAN
Yes
Wi-Fi
No
Supported network protocols
IPv4- IPv6- UDP- TCP- HTTP- HTTPS- RTP/RTCP- IGMP V2/V3- ICMP- ICMPv6- RTSP- FTP- ARP- DHCP- APIPA (Auto-IP- link local address)- NTP (SNTP)- SNMP (V1- V3- MIB-II)- 802.1x- DNS- DNSv6- DDNS (DynDNS.org- selfHOST.de- noip.com)- SMTP- iSCSI- UPnP (SSDP)- DiffServ (QoS)- LLDP- SOAP- Dropbox- CHAP
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSDHC- MicroSDXC
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Composite video out
1
Connectivity technology
Wired
Security
Intelligent Video Surveillance (IVS) system features
People counting
Security algorithms
128-bit AES- 256-bit AES- TLS
Mirror
Yes
Management features
Behavior analysis
Line crossing detection
Power
Power source type
DC- PoE
Power consumption (max)
9.5 W
Power consumption (Power over Ethernet (PoE))
10.5 W
Power consumption (typical)
3.1 W
DC output voltage
12
Certificates
Certification
EN 55032- CFR 47 FCC 15- B- AS/NZS CISPR 32 EN 50130-4- EN 50121-4 EN 50130-5 (IV); EN 60068-2-1- EN 60068-2-2- EN 60068-2-6- EN 60068-2-18- EN 60068-2-27- EN 60068-2-30- EN 60068-2-52- EN 60068-2-75- EN 60068-2-78- EN 60068-2-5 EN 62368-1 EN 60950-22 UL 62368-1 UL 60950-22 IEC 62471 (IR) CAN/CSA-C22.2 No. 60950-1 CAN/CSA-C22.2 No. 60950-22-07 IEC 62676-5 ITU-R BT.709-6 EN 50132-5-2 EN 62676-2 EN 62262 EN 60529 EN 50581 CE- FCC- cULus- WEEE- RCM- VCCI- EAC- CMIM
Operational conditions
Operating temperature (T-T)
-30 - 50 °C
Storage temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
5 - 100%
Storage relative humidity (H-H)
0 - 98%
Weight & dimensions
Height
135 mm
Diameter
13.7 cm
Weight
1.13 kg
Packaging content
Number of cameras
1
Technical details
Sustainability certificates
CE- RoHS
Other features
Video compression formats
H.264- M-JPEG- H.265- HEVC
Bosch FLEXIDOME IP turret 3000i IR Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling/wall
