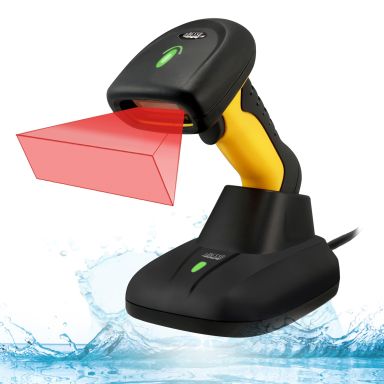

Adesso NuScan 5200TR - 2.4GHz RF Wireless Antimicrobial & Waterproof 2D Barcode Scanner
In Stock
|
$207.39
$248.87 (Inc. VAT)
Scanning
Type
Handheld bar code reader
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 25 (IR 2 of 5), Code 25 (non-IR 2 of 5), Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), MSI, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported
Data Matrix, Micro QR Code, PDF417, QR Code
Motion tolerance (cm/s)
60.96
Yaw reading angle
-360 - 360°
Working distance
30 cm
Wavelength
650 nm
Tilt reading angle
-50 - 50°
Sensor type
CMOS
Scanner type
1D/2D
Pitch reading angle
-45 - 45°
Maximum scan width
0.254 mm
Light levels (direct sunlight)
0 - 100000 lx
Optical sensor resolution (W x H)
640 x 480 pixels
Ports & interfaces
Connectivity technology
Wireless
Operating frequency
2400 MHz
Cable length
1.83 m
Standard interfaces
RF Wireless
Performance
Protection features
Shock resistant, Waterproof
LED indicators
Yes
Housing material
Plastic, Silicone
International Protection (IP) code
IP67
Product colour
Black, Yellow
Certification
FCC, CE
Buzzer
Yes
Country of origin
China
Light levels (direct sunlight)
0 - 100000 lx
Design
Type
Handheld bar code reader
Protection features
Shock resistant, Waterproof
LED indicators
Yes
Housing material
Plastic, Silicone
International Protection (IP) code
IP67
Product colour
Black, Yellow
Certification
FCC, CE
Power
Power consumption
220 mA
Power source type
Battery
Input voltage
5 V
Weight & dimensions
Width
72 mm
Depth
100 mm
Height
175 mm
Weight
160 g
Package width
266.7 mm
Package depth
182.8 mm
Package height
114.3 mm
Package weight
907 g
Technical details
Type
Handheld bar code reader
Protection features
Shock resistant, Waterproof
LED indicators
Yes
Housing material
Plastic, Silicone
International Protection (IP) code
IP67
Compatible operating systems
Windows 10, Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP, Mac OS X
Product colour
Black, Yellow
Certification
FCC, CE
Buzzer
Yes
Sustainability certificates
RoHS
Harmonized System (HS) code
84716070
Compliance certificates
RoHS
Packaging data
Package width
266.7 mm
Package depth
182.8 mm
Package height
114.3 mm
Package weight
907 g
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Light levels (direct sunlight)
0 - 100000 lx
Logistics data
Harmonized System (HS) code
84716070
Other features
Compatible operating systems
Windows 10, Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP, Mac OS X
Adesso NuScan 5200TR - 2.4GHz RF Wireless Antimicrobial & Waterproof 2D Barcode Scanner
