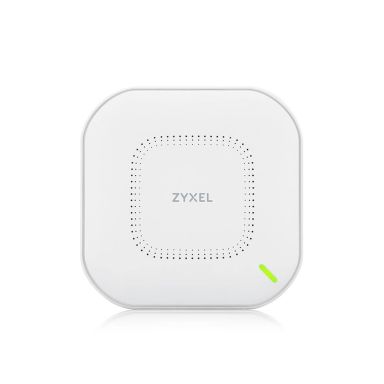

Zyxel NWA110AX-EU0102F 1000 Mbit/s White Power over Ethernet (PoE)
In Stock
|
$167.77
$201.32 (Inc. VAT)
Data transmission
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1000 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Automatic channel selection
Yes
On/off switch
Yes
Transmitting power
22 dBmW
Reset button
Yes
Bandwidth
0.08 GHz
Frequency band
2.412 - 2.472- 5.470 - 5.725 GHz
Web-based management
Yes
VLAN support
Yes
Receiver sensitivity
Min. Rx sensitivity up to -101 dBm
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11ax-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Ethernet LAN data rates
10-100-1000 Mbit/s
Certification
FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1
Maximum data transfer rate
1000 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Wireless LAN features
Frequency band
2.412 - 2.472- 5.470 - 5.725 GHz
Network
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11ax-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Bandwidth
Bandwidth
0.08 GHz
Management features
VLAN support
Yes
Web-based management
Yes
Command-line interface (CLI)
Yes
Certificates
Certification
FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1
Features
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Automatic channel selection
Yes
Transmitting power
22 dBmW
Bandwidth
0.08 GHz
Frequency band
2.412 - 2.472- 5.470 - 5.725 GHz
VLAN support
Yes
Receiver sensitivity
Min. Rx sensitivity up to -101 dBm
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11ax-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Ethernet LAN data rates
10-100-1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Maximum data transfer rate
1000 Mbit/s
Fast roaming
Yes
Automatic channel scanning
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Maximum data transfer rate (2.4 GHz)
575 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Virtual LAN features
SSID-based VLAN assignment
Security
Security algorithms
WPA-WPA-PSK-WPA2-WPA2-Enterprise-WPA3
Protocols
Routing protocols
IP
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL)
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Cabling technology
10/100/1000Base-T(X)
Power
Power consumption (typical)
17 W
Power over Ethernet (PoE)
Yes
Input voltage
5 - 12 V
Input current
1.5 A
Design
Placement
Ceiling- Table- Wall
On/off switch
Yes
Product colour
White
Reset button
Yes
LED indicators
Yes
Certification
FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1
WPS push button
Yes
Antenna
Antenna type
Internal
Polarization
Dual polarization
Antennas quantity
2
Antenna gain level (max)
6 dBi
Antenna features
Integrated antenna
Technical details
Transmitting power
22 dBmW
Reset button
Yes
Receiver sensitivity
Min. Rx sensitivity up to -101 dBm
Polarization
Dual polarization
WPS push button
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-30 - 70 °C
Storage relative humidity (H-H)
10 - 90%
Indication
LED indicators
Yes
Software
Automatic channel scanning
Yes
Fast roaming
Yes
Weight & dimensions
Width
180 mm
Depth
180 mm
Weight
453 g
Height
39 mm
Package width
229 mm
Package depth
216 mm
Package height
64 mm
Package weight
770 g
Packaging data
Quick start guide
Yes
Mounting kit
Yes
Package width
229 mm
Package depth
216 mm
Package height
64 mm
Package weight
770 g
AC adapter included
Yes
Number of products included
1 pc(s)
Packaging content
Quick start guide
Yes
Mounting kit
Yes
AC adapter included
Yes
Number of products included
1 pc(s)
Other features
Polarization
Dual polarization
WPS push button
Yes
Zyxel NWA110AX-EU0102F 1000 Mbit/s White Power over Ethernet (PoE)
