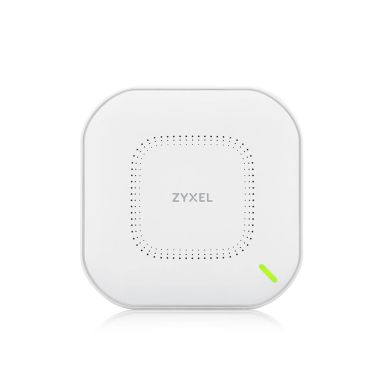

Zyxel NWA110AX-EU0103F wireless access point 1775 Mbit/s White Power over Ethernet (PoE)
In Stock
|
$449.85
$539.82 (Inc. VAT)
Data transmission
Ethernet LAN data rates
10-100-1000 Mbit/s
Maximum data transfer rate
1775 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wireless isolation
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Auto Wireless Distribution System (WDS)
Yes
Web-based management
Yes
VLAN support
Yes
Receiver sensitivity
-101 dBm
Ethernet LAN data rates
10-100-1000 Mbit/s
Channel bandwidth
80 MHz
Maximum data transfer rate
1775 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Bandwidth
Channel bandwidth
80 MHz
Management features
VLAN support
Yes
Web-based management
Yes
Features
2.4 GHz
Yes
5 GHz
Yes
Wireless isolation
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Receiver sensitivity
-101 dBm
Ethernet LAN data rates
10-100-1000 Mbit/s
Channel bandwidth
80 MHz
Maximum data transfer rate
1775 Mbit/s
Transmitting power (FCC)
23 dBm
Transmitting power (CE)
20/22 dBm
Fast roaming
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Maximum data transfer rate (2.4 GHz)
575 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Security
Auto Wireless Distribution System (WDS)
Yes
MAC address filtering
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Power
Power over Ethernet (PoE)
Yes
Input current
1.5 A
AC input voltage
12 V
Design
Placement
Wall
Product colour
White
Antenna
Antenna type
Internal
Antenna gain level (max)
6 dBi
Technical details
Receiver sensitivity
-101 dBm
Harmonized System (HS) code
85176990
Operational conditions
Operating relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-30 - 70 °C
Storage relative humidity (H-H)
10 - 90%
Software
Fast roaming
Yes
Weight & dimensions
Width
180 mm
Depth
180 mm
Weight
453 g
Height
39 mm
Zyxel NWA110AX-EU0103F wireless access point 1775 Mbit/s White Power over Ethernet (PoE)
