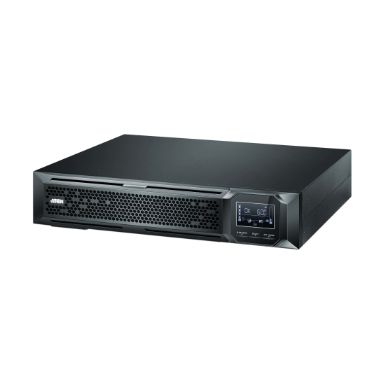

ATEN OL2000HV uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outl
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Power | |
|---|---|
| Output voltage regulation | 1% |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 1500 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Maximum current | 7.2 A |
| Efficiency | 97% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Crest factor | 3:1 |
| Output power capacity | 1.5 kVA |
| ECO mode | Yes |
| Ports & interfaces | |
| Cable length | 1.8 m |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| Serial interface | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Serial ports quantity | 1 |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| LED indicators | Yes |
| Power protection features | Over voltage |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output voltage regulation | 1% |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 1500 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Maximum current | 7.2 A |
| Efficiency | 97% |
| Emergency Power Off (EPO) | Yes |
| Power protection features | Over voltage |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 50 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 1.5 kVA |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Battery | |
| Number of batteries supported | 3 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 10.3 min |
| Typical backup time at full load | 2.96 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Replacement battery cartridge | BC36V9AH |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Cooling type | Active |
| Certification | CE |
| Cable length | 1.8 m |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85078000 |
| Cooling | |
| Cooling type | Active |
| Weight & dimensions | |
| Weight | 14.3 kg |
| Width | 438 mm |
| Height | 88 mm |
| Depth | 410 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Input power cable- RS-232- USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
| Certificates | |
| Certification | CE |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Input power cable- RS-232- USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
ATEN OL2000HV uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outl
