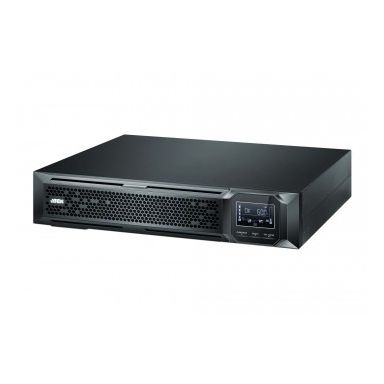

Aten OL3000HV uninterruptible power supply (UPS) Double-conversion (Online) 3000 VA 3000 W 9 AC outlet(s)
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Power | |
|---|---|
| Output power | 3000 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Maximum current | 14.5 A |
| Emergency Power Off (EPO) | Yes |
| Power factor | 1 |
| Output voltage Total Harmonic Distortion (THD) | 0.04 |
| Crest factor | 0.12569444444444 |
| Output power capacity | 3 kVA |
| Charging current | 0.33333333333333 |
| ECO mode | Yes |
| Performance | |
| Waveform | Sine |
| Power protection features | Over voltage |
| Noise level | 50 dB |
| Features | |
| Waveform | Sine |
| Output power | 3000 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Maximum current | 14.5 A |
| Emergency Power Off (EPO) | Yes |
| Power protection features | Over voltage |
| Power factor | 1 |
| Output voltage Total Harmonic Distortion (THD) | 0.04 |
| Noise level | 50 dB |
| Crest factor | 0.12569444444444 |
| Output power capacity | 3 kVA |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Charging current | 0.33333333333333 |
| Ports & interfaces | |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| AC outlets quantity | 9 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port type | USB Type-B |
| Battery | |
| Number of batteries supported | 6 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Charging current | 0.33333333333333 |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | =-20 - 50% |
| Technical details | |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Weight | 28.7 kg |
| Width | 438 mm |
| Height | 63 mm |
| Depth | 88 mm |
Aten OL3000HV uninterruptible power supply (UPS) Double-conversion (Online) 3000 VA 3000 W 9 AC outlet(s)
