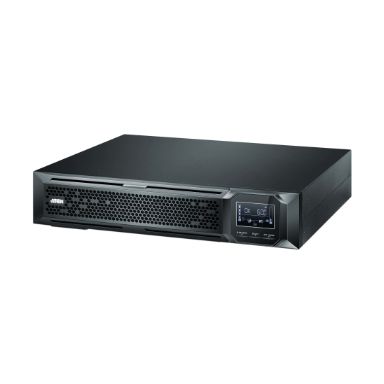

Aten Ol3000hv-At-G Professional Online Ups
In Stock
|
$1331.04
$1597.25 (Inc. VAT)
Power
Output power
3000 W
Input operation voltage (min)
110 V
Input operation voltage (max)
300 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Efficiency
90%
Crest factor
3:1
Output power capacity
3 kVA
Charging current
2 A
Efficiency (ECO mode)
96%
ECO mode
Yes
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Response time
4 ms
LED indicators
Yes
Noise level
50 dB
Features
UPS topology
Double-conversion (Online)
Waveform
Sine
Response time
4 ms
Output power
3000 W
Input operation voltage (min)
110 V
Input operation voltage (max)
300 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Efficiency
90%
Noise level
50 dB
Crest factor
3:1
Output power capacity
3 kVA
Efficiency (ECO mode)
96%
ECO mode
Yes
Input frequency
40/70 Hz
Charging current
2 A
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
9 AC outlet(s)
AC outlet types
C13 coupler- C19 coupler
Power plug
C20 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
RS-232 ports
1
Ethernet LAN (RJ-45) ports
2
USB port type
USB Type-B
Battery
Number of batteries supported
6
Battery voltage
72 V
Battery capacity
9 Ah
Battery technology
Sealed Lead Acid (VRLA)
Number of battery cells
6
Battery recharge time
3 h
Typical backup time at half load
10.1 min
Typical backup time at full load
2.96 min
Cold start
Yes
Charging current
2 A
Design
Rack capacity
2U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Cooling type
Active
Certification
CE RoHS
Built-in fan
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
10 - 95%
Technical details
Harmonized System (HS) code
85078000
Cooling
Cooling type
Active
Built-in fan
Yes
Weight & dimensions
Package width
88 mm
Package depth
438 mm
Package height
630 mm
Weight
27.6 kg
Width
438 mm
Package weight
34.8 kg
Height
630 mm
Depth
88 mm
Packaging data
Cables included
Output power cable- Power load cable- RS-232- USB cable
Manual
Yes
Package width
88 mm
Package depth
438 mm
Package height
630 mm
Package weight
34.8 kg
Logistics data
Products per master (outer) case
1 pc(s)
Master (outer) case width
600 mm
Master (outer) case length
760 mm
Master (outer) case height
240 mm
Master (outer) case gross weight
34.8 kg
Master (outer) case net weight
27.6 kg
Certificates
Certification
CE RoHS
Packaging content
Cables included
Output power cable- Power load cable- RS-232- USB cable
Manual
Yes
