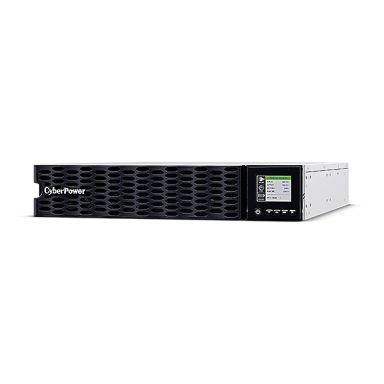

CyberPower OL6KERTHD uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 7 AC outlet(s)
In Stock
|
Call For Price (0808 189 1246)
Power
Output power factor
1
Input power factor
0.99
Output power
6000 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Surge energy rating
2430 J
Maximum current
32 A
Emergency Power Off (EPO)
Yes
Crest factor
3:1
Output power capacity
6 kVA
Total Harmonic Distortion (THD) (linear load)
3%
Total Harmonic Distortion (THD) (non-linear load)
5%
Efficiency (ECO mode)
97%
ECO mode
Yes
Battery
Battery type
RBP0144
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
4 h
Typical backup time at half load
6.2 min
Typical backup time at full load
2.4 min
Hot-swap battery
Yes
Performance
Audible alarm modes
Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Response time
0 ms
LED indicators
Yes
EMI/RFI noise filtering
Yes
Surge protection
Yes
Power protection features
Overload
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Country of origin
China
Audible alarm modes
Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Output power factor
1
Input power factor
0.99
Response time
0 ms
Output power
6000 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Surge energy rating
2430 J
Maximum current
32 A
EMI/RFI noise filtering
Yes
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Power protection features
Overload
Crest factor
3:1
Audible alarm(s)
Yes
Output power capacity
6 kVA
Total Harmonic Distortion (THD) (linear load)
3%
Total Harmonic Distortion (THD) (non-linear load)
5%
Efficiency (ECO mode)
97%
ECO mode
Yes
Input frequency
50/60 Hz
Heat dissipation
1613 BTU/h
Ports & interfaces
Emergency Power Off (EPO) connector
Yes
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
7 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler, Terminal
Power plug
Terminal
USB 2.0 ports quantity
1
Serial ports quantity
1
RS-232 ports
1
Design
Country of origin
China
Rack capacity
2U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black, Grey
Certification
CE, EAC, RCM
Housing material
Metal
Control type
Buttons
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-5 - 45 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 4500 m
Technical details
Output frequency
50/60 Hz
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR
Harmonized System (HS) code
8504408690
Compliance certificates
CE, EAC, RCM, RoHS
Certificates
Certification
CE, EAC, RCM
Compliance certificates
CE, EAC, RCM, RoHS
Packaging content
Cables included
Serial, USB cable
Manual
Yes
Sustainability
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR
Weight & dimensions
Package width
600 mm
Package depth
1100 mm
Package height
335 mm
Weight
42 kg
Width
433 mm
Package weight
53 kg
Height
86.5 mm
Depth
720 mm
Packaging data
Cables included
Serial, USB cable
Manual
Yes
Package width
600 mm
Package depth
1100 mm
Package height
335 mm
Package weight
53 kg
Logistics data
Country of origin
China
Harmonized System (HS) code
8504408690
Other features
Battery type
RBP0144
CyberPower OL6KERTHD uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 7 AC outlet(s)
| Length | 110 cm |
| Width | 60 cm |
| Height | 33.5 cm |
| Weight | 53.00 kgs |
