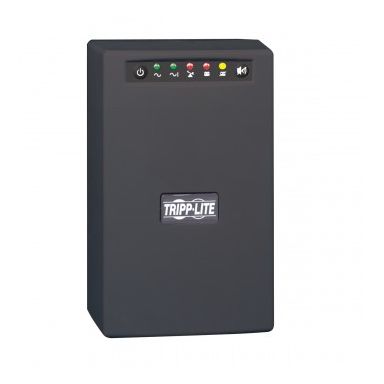

Tripp Lite OmniVS 230V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port, C13 Outlets
In Stock
|
Call For Price
(0808 189 1246)
Power
Output voltage regulation
-18- +8%
Output power
940 W
Input operation voltage (min)
151 V
Input operation voltage (max)
282 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
340 J
Maximum current
0.20833333333333
Efficiency
0.97
Output power capacity
1.5 kVA
Ports & interfaces
Cable length
0.2 m
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
2
Performance
UPS topology
Line-Interactive
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Number of input phases
1
LED indicators
Yes
EMI/RFI noise filtering
Yes
Surge protection
Yes
Audible alarm(s)
Yes
Features
Country of origin
China
UPS topology
Line-Interactive
Waveform
Sine
Output voltage regulation
-18- +8%
Automatic Voltage Regulation (AVR)
Yes
Number of input phases
1
Output power
940 W
Input operation voltage (min)
151 V
Input operation voltage (max)
282 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
340 J
Maximum current
0.20833333333333
Efficiency
0.97
EMI/RFI noise filtering
Yes
Surge protection
Yes
Audible alarm(s)
Yes
Output power capacity
1.5 kVA
Input frequency
50/60 Hz
Battery
Battery recharge time
4.5 h
Typical backup time at half load
13 min
Typical backup time at full load
4.5 min
Hot-swap battery
Yes
Cold start
Yes
Design
Country of origin
China
Rack capacity
2U
Form factor
Tower
LED indicators
Yes
Product colour
Black
Cable length
0.2 m
Housing material
Polycarbonate (PC)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Technical details
Sustainability certificates
RoHS
Weight & dimensions
Weight
14.5 kg
Width
184.2 mm
Height
298.4 mm
Depth
190.5 mm
Tripp Lite OmniVS 230V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port, C13 Outlets
| Length | 19.05 cm |
| Width | 18.42 cm |
| Height | 29.84 cm |
| Weight | 14.500000 kgs |
