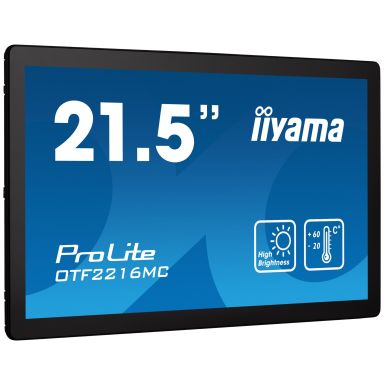

iiyama 21.5" high-brightness touchscreen with 10 touch points PCAP touch technology for outdoor applications
In Stock
|
£737.10
£884.52 (Inc. VAT)
get it next day (UK Mainland Orders)
Display
Panel type
VA
Display number of colours
16.7 million colours
Number of simultaneous touchpoints
10
Touchscreen
Yes
Active display area (W x H)
477 x 269 mm
Display technology
LCD
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
Display brightness
1100 cd/m²
HD type
Full HD
Response time
25 ms
Contrast ratio (typical)
5000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.248 x 0.248 mm
Display diagonal (metric)
54.6 cm
Native aspect ratio
16:9
Horizontal scan range
31.4 - 82 kHz
Colour depth
8 bit
Maximum refresh rate
60 Hz
Touchscreen technology
Projected capacitive system
Surface hardness
7H
Native refresh rate
60 Hz
Glass thickness
3.15 mm
Ports & interfaces
USB port
Yes
Wi-Fi
No
DisplayPorts quantity
1
Ethernet LAN
Yes
HDMI ports quantity
1
DVI port
No
VGA (D-Sub) input ports
1
HDMI input ports quantity
1
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Product colour
Black
Panel mounting interface
100 x 100 mm
Certification
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
VESA mounting
Yes
Screen shape
Flat
Performance
Purpose
Universal
International Protection (IP) code
IP65
Mean time between failures (MTBF)
60000 h
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
On Screen Display (OSD)
Yes
Number of OSD languages
7
HDCP
Yes
Wi-Fi
No
Power
Power consumption (off)
0.3 W
Power consumption (typical)
43 W
Power consumption (standby)
1.5 W
Energy efficiency scale
A to G
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
16 kWh
Weight & dimensions
Width (with stand)
520 mm
Height (with stand)
315 mm
Depth (with stand)
42.5 mm
Weight (with stand)
4.6 kg
Display width
520 mm
Display depth
42.5 mm
Display height
315 mm
Display weight
4.6 kg
Packaging data
Package width
608 mm
Package depth
608 mm
Package height
400 mm
Package weight
4.5 kg
Quick start guide
Yes
Remote control included
Yes
Cables included
AC, DisplayPort, HDMI, USB
Packaging content
Quick start guide
Yes
Remote control included
Yes
Cables included
AC, DisplayPort, HDMI, USB
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Certificates
Certification
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Technical details
VESA mounting
Yes
Power supply type
External
Panel type
VA
Cable management
Yes
Number of simultaneous touchpoints
10
Weight (with stand)
4.6 kg
Other features
Power supply type
External
Panel type
VA
Cable management
Yes
Number of simultaneous touchpoints
10
Wi-Fi
No
Width (with stand)
520 mm
Viewable size, vertical
26.9 cm
Viewable size, horizontal
47.7 cm
Mean time between failures (MTBF)
60000 h
Height (with stand)
315 mm
Display technology
LCD
Depth (with stand)
42.5 mm
Quick start guide
Yes
Weight (with stand)
4.6 kg
Maximum refresh rate
60 Hz
Energy efficiency scale
A to G
iiyama 21.5" high-brightness touchscreen with 10 touch points PCAP touch technology for outdoor applications
| Length | 60.8 cm |
| Width | 60.8 cm |
| Height | 40 cm |
| Weight | 4.50 kgs |
