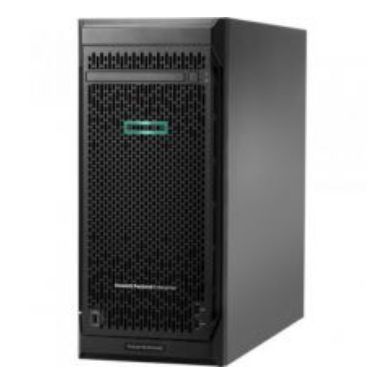

HPE ProLiant P03686-S01 ML110 Gen10 Server
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Processor
Thermal Design Power (TDP)
85 W
Tcase
77 °C
Supported instruction sets
AVXAVX 2.0AVX-512SSE4.2
Stepping
U0
Scalability
2S
Processor threads
16
Processor package size
76 x 56.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Skylake
Processor code
SR3GJ
Number of QPI links
2
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2400 MHz
Memory channels supported by processor
Hepta
Maximum number of PCI Express lanes
48
Maximum internal memory supported by processor
768 GB
Execute Disable Bit
Yes
Embedded options available
No
ECC supported by processor
Yes
Processor cache type
L3
Processor cache
11 MB
Conflict Free processor
Yes
Processor frequency
1.8 GHz
Number of processors installed
1
Processor model
4108
Processor boost frequency
3 GHz
Processor socket
LGA 3647
Processor cores
8
Motherboard chipset
Intel C621
Maximum number of SMP processors
1
Processor family
Intel XeonÂ
Memory
Internal memory
16 GB
Memory layout (slots x size)
1 x 16 GB
Memory slots
6 DIMM
Memory clock speed
2666 MHz
Maximum internal memory
192 GB
Internal memory type
DDR4-SDRAM
Storage
RAID support
Yes
Number of HDDs supported
4
Maximum storage capacity
96 TB
Hot-Plug support
Yes
HDD size
3.5"
HDD interface
Serial ATA
Networking
LAN controller
HP 332i
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express slots version
3
Optical drive
Optical drive type
No
Design
Optical drive type
No
Chassis type
Tower (4.5U)
Operating system installed
No
Software
Compatible operating systems
Microsoft Windows Serve
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware
ClearOS
Operating system installed
No
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Turbo Boost Technology
2
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel Hyper Threading Technology (Intel HT Technology)
Yes
Intel AES New Instructions (Intel AES-NI)
Yes
Intel 64
Yes
Intel Virtualization Technology (VT-x)
Yes
Processor ARK ID
123544
Power
Number of main power supplies
1
Redundant power supply (RPS) support
No
Power supply
550 W
Certificates
Energy Star certified
Yes
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Hot-Plug support
Yes
Ethernet interface type
Gigabit Ethernet
Chassis type
Tower (4.5U)
Weight & dimensions
Width
7.68" (195 mm)
Weight
29.8 lbs (13.5 kg)
Height
18.9" (480.5 mm)
Depth
17.3" (440 mm)
HPE ProLiant P03686-S01 ML110 Gen10 Server
| Length | 44.00 cm |
| Width | 19.50 cm |
| Height | 48.05 cm |
| Weight | 13.520000 kgs |
