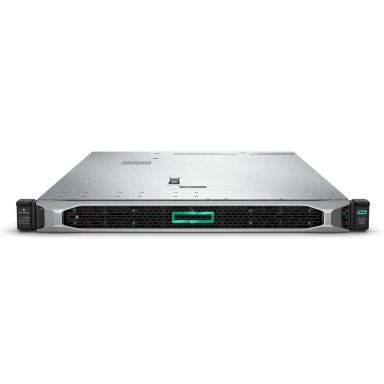

HPE ProLiant DL360 Gen10 server Rack (1U) Intel® Xeon® Gold 5220 2.2 GHz 64 GB DDR4-SDRAM 800 W
In Stock
|
Call For Price
(0808 189 1246)
Processor
Processor generation
2nd Generation Intel® Xeon® Scalable
Thermal Design Power (TDP)
125 W
Tcase
87 °C
Supported instruction sets
AVX-512
Scalability
4S
Processor threads
36
Processor package size
76.0 x 56.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Cascade Lake
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2667 MHz
Maximum number of PCI Express lanes
48
Maximum internal memory supported by processor
1.02 TB
Execute Disable Bit
Yes
Embedded options available
No
Processor cache type
L3
Processor cache
24.75 MB
Processor frequency
2.2 GHz
Processor boost frequency
3.9 GHz
Number of processors installed
2
Processor model
5220
Processor socket
LGA 3647 (Socket P)
Processor cores
18
Processor manufacturer
Intel
Motherboard chipset
Intel® C621
Maximum number of SMP processors
2
Processor family
Intel® Xeon® Gold
Memory
Internal memory
64 GB
Memory layout (slots x size)
2 x 32 GB
Memory slots
24x DIMM
Memory clock speed
2933 MHz
Maximum internal memory
1.54 TB
Internal memory type
DDR4-SDRAM
ECC
Yes
Storage
RAID support
Yes
RAID levels
0, 1, 5, 6, 10, 50, 60
Optical drive type
No
Number of HDDs supported
8
Maximum storage capacity
26.4 TB
HDD size
2.5"
HDD interface
Serial ATA, Serial Attached SCSI (SAS)
Graphics
On-board graphics card model
Not available
Network
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet, 25 Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express slots version
3.0
Optical drive
Optical drive type
No
Design
Rack mounting
Yes
Optical drive type
No
Chassis type
Rack (1U)
Product colour
Black, Silver
Performance
Compatible operating systems
Windows Server 2019: Essentials, Standard, Datacenter
Windows Server 2016: Essentials, Standard, Datacenter
Windows Server 2012 R2: Essentials, Standard, Datacenter
Microsoft Hyper-V Server: 2012 R2, 2016 & 2019
VMware vSphere: 6.0 U3, 6.5 U2 & 6.7 U1
ClearVM: 7.6 & 8.0
Red Hat Enterprise Linux (RHEL): 7.6 w/ Kbase
SUSE Linux Enterprise Server (SLES): 12 SP4 & 15 SP1 (inc. Xen)
Remote administration
iLO 5 ASIC
Operating system installed
No
Harmonized System (HS) code
84714100
Software
Compatible operating systems
Windows Server 2019: Essentials, Standard, Datacenter
Windows Server 2016: Essentials, Standard, Datacenter
Windows Server 2012 R2: Essentials, Standard, Datacenter
Microsoft Hyper-V Server: 2012 R2, 2016 & 2019
VMware vSphere: 6.0 U3, 6.5 U2 & 6.7 U1
ClearVM: 7.6 & 8.0
Red Hat Enterprise Linux (RHEL): 7.6 w/ Kbase
SUSE Linux Enterprise Server (SLES): 12 SP4 & 15 SP1 (inc. Xen)
Operating system installed
No
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Turbo Boost Technology
2.0
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel 64
Yes
Intel Virtualization Technology (VT-x)
Yes
Processor ARK ID
193388
Power
Number of redundant power supplies installed
2
Redundant power supply (RPS) support
Yes
Power supply
800 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Rack mounting
Yes
Ethernet interface type
10 Gigabit Ethernet, 25 Gigabit Ethernet
Chassis type
Rack (1U)
Sustainability certificates
ENERGY STAR
Management features
Remote administration
iLO 5 ASIC
Logistics data
Harmonized System (HS) code
84714100
Sustainability
Sustainability certificates
ENERGY STAR
Weight & dimensions
Width
434.6 mm
Height
42.9 mm
Depth
707 mm
HPE ProLiant DL360 Gen10 server Rack (1U) Intel® Xeon® Gold 5220 2.2 GHz 64 GB DDR4-SDRAM 800 W
