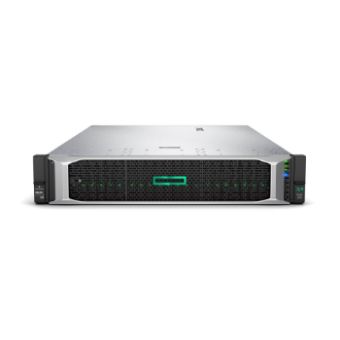

HPE ProLiant P21271-B21 DL560 Gen10 Server

Processor cache

24.75 MB

Processor frequency

2.2 GHz

Number of processors installed

2

Processor model

5220

Processor boost frequency

3.9 GHz

Processor manufacturer

Intel

Motherboard chipset

Intel‚ C621

Maximum number of SMP processors

4

Processor family

Intel‚ Xeon‚ Gold

Internal memory

64 GB

Memory layout (slots x size)

2 x 32 GB

Memory slots

48 DIMM

Memory clock speed

2933 MHz

Maximum internal memory

1536 GB

Internal memory type

DDR4-SDRAM

Supported HDD sizes

2.5"

RAID support

Yes

RAID levels

011 ADM5610 ADM105060

Optical drive type

No

Number of HDDs supported

8

Maximum storage capacity

58 TB

Hot-Plug support

Yes

HDD interface

Serial ATASerial Attached SCSI (SAS)

Maximum graphics adapter memory

16 MB

On-board graphics adapter

Yes

Ethernet LAN

Yes

Cabling technology

10/100/1000Base-T(X)

VGA (D-Sub) ports quantity

1

USB 2.0 ports quantity

4

Serial ports quantity

1

Ethernet LAN (RJ-45) ports

4

Optical drive type

No

Redundant fans support

Yes

Rack mounting

Yes

Optical drive type

No

Chassis type

Rack (2U)

Remote administration

iLO 5 ASIC

Trusted Platform Module (TPM) version

2

Trusted Platform Module (TPM)

Yes

Operating system installed

No

Compatible operating systems

Windows Server 2012 R2

Windows Server 2016

Windows Server 2019

VMware ESXi 6.0 U3

VMware ESXi 6.5 U2

VMware ESXi 6.7 U1

Red Hat Enterprise Linux (RHEL) 7.6 & 8.0

SUSE Linux Enterprise Server (SLES) 12 SP4 12 SP3 & 15 SP1

CentOS 7.6

Operating system installed

No

Number of redundant power supplies installed

1

Number of redundant power supplies supported

2

Redundant power supply (RPS) support

Yes

Power supply

1600 W

Energy Star certified

No

Remote administration

iLO 5 ASIC

Trusted Platform Module (TPM) version

2

Trusted Platform Module (TPM)

Yes

Supported HDD sizes

2.5"

Redundant fans support

Yes

Rack mounting

Yes

Hot-Plug support

Yes

Chassis type

Rack (2U)

Width

17.5" (445.5 mm)

Weight

75.2 lbs (34.1 kg)

Height

3.44" (87.5 mm)

Depth

29.7" (754.7 mm)
