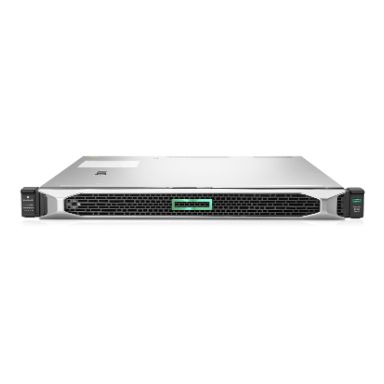

Hewlett Packard Enterprise ProLiant DL160 Gen10 server Rack (1U) Intel 2.3 GHz 16 GB DDR4-SDRAM 500 W
Out of Stock
|
Call For Price (0808 189 1246)
Hewlett Packard Enterprise ProLiant DL160 Gen10 server Rack (1U) Intel 2.3 GHz 16 GB DDR4-SDRAM 500 W
Write Your Own Review
Processor
Thermal Design Power (TDP)
125 W
Tcase
87 °C
Supported instruction sets
AVX-512
Scalability
4S
Processor threads
32
Processor package size
76.0 x 56.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Cascade Lake
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2667 MHz
Maximum number of PCI Express lanes
48
Maximum internal memory supported by processor
1024 GB
Execute Disable Bit
Yes
Embedded options available
No
Processor cache
22 MB
Processor frequency
2.3 GHz
Processor boost frequency
3.9 GHz
Number of processors installed
1
Processor model
5218
Processor socket
LGA 3647 (Socket P)
Processor cores
16
Processor manufacturer
Intel
Motherboard chipset
Intel C622
Maximum number of SMP processors
2
Processor family
Intel® Xeon® Gold
Memory
Internal memory
16 GB
Memory layout (slots x size)
1 x 16 GB
Memory slots
16x DIMM
Memory clock speed
2933 MHz
Maximum internal memory
1024 GB
Internal memory type
DDR4-SDRAM
ECC
Yes
Storage
Supported HDD sizes
2.5"
RAID support
Yes
RAID levels
0- 1- 5- 10
Optical drive type
No
Number of HDDs supported
8
Maximum storage capacity
20 TB
Hot-Plug support
Yes
Graphics
On-board graphics card model
Not available
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express slots version
3
Optical drive
Optical drive type
No
Design
Rack mounting
Yes
Optical drive type
No
Chassis type
Rack (1U)
Performance
Remote administration
iLO 5 ASIC
Trusted Platform Module (TPM)
Yes
Operating system installed
No
Harmonized System (HS) code
84714100
Software
Operating system installed
No
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Turbo Boost Technology
2
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel 64
Yes
Intel Virtualization Technology (VT-x)
Yes
Processor ARK ID
192444
Power
Redundant power supply (RPS) support
Yes
Power supply
500 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Trusted Platform Module (TPM)
Yes
Supported HDD sizes
2.5"
Rack mounting
Yes
Hot-Plug support
Yes
Ethernet interface type
Gigabit Ethernet
Chassis type
Rack (1U)
Sustainability certificates
ENERGY STAR
Management features
Remote administration
iLO 5 ASIC
Weight & dimensions
Width
434.6 mm
Height
42.9 mm
Depth
614.9 mm
| Weight | 1.00 kgs |
