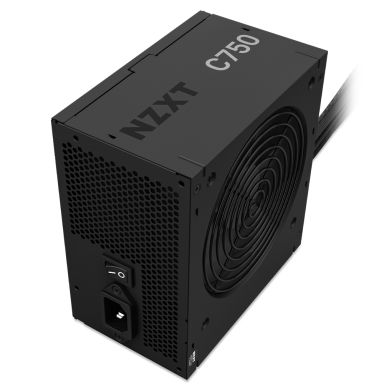

NZXT C750 Bronze power supply unit 750 W 24-pin ATX ATX Black
In Stock
|
Call For Price
(0808 189 1246)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan speed
2400 - 2400 RPM
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Bronze
Purpose
PC
ATX version
2.53
EPS version
2.92
Noise level
39.92 dB
Mean time between failures (MTBF)
100000 h
Design
80 PLUS certification
80 PLUS Bronze
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan speed
2400 - 2400 RPM
Cooling type
Active
Power
Total power
750 W
Maximum input current (@220V)
5 A
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
10-5 A
Power Factor Correction (PFC) type
Active
Maximum input current (@110V)
10 A
Combined power (+3.3V)
120 W
Combined power (+12V)
750 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
62.5 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over current, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length
60 cm
SATA power cable length
150,500 mm
Peripheral (Molex) power cable length
150,500 mm
Motherboard power connector
24-pin ATX
Number of SATA power connectors
4
Peripheral (Molex) power connectors (4-pin)
4
PCI Express power connectors (6+2 pin)
2
CPU power connector (4+4 pin)
Yes
ATX Power connector (24-pin)
Yes
Cabling type
Non-Modular
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Packaging content
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Packaging data
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Technical details
Sustainability compliance
Yes
Warranty period
3 year(s)
Compliance certificates
CE, China RoHS, REACH, RoHS, UKCA
Certificates
80 PLUS certification
80 PLUS Bronze
NZXT C750 Bronze power supply unit 750 W 24-pin ATX ATX Black
