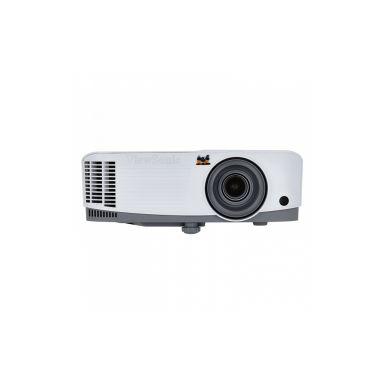

Viewsonic PA503X data projector 3600 ANSI lumens DLP XGA (1024x768) Desktop projector Gray, White
In Stock
|
Call For Price
(0808 189 1246)
Projector
Number of colours
1.073 billion colours
Projector native resolution
XGA (1024x768)
Native aspect ratio
4:3
Screen size compatibility
762 - 7620 mm (30 - 300")
Projection distance
1.1 - 13 m
Contrast ratio (dynamic)
22000:1
Zoom capability
Yes
Vertical scan range
23 - 120 Hz
Horizontal scan range
15 - 102 kHz
Matrix type
DMD
Matrix size
1.4 cm (0.55")
Keystone correction- vertical
-40 - 40°
Projection technology
DLP
Projector brightness
3600 ANSI lumens
Zoom type
Manual
Lamps
Lamps quantity
1 lamp(s)
Lamp power
190 W
Light source type
Lamp
Service life of light source
4500 h
Service life of light source (economic mode)
15000 h
Light source
Lamps quantity
1 lamp(s)
Lamp power
190 W
Light source type
Lamp
Service life of light source
4500 h
Service life of light source (economic mode)
15000 h
Lens system
Zoom capability
Yes
Focus
Manual
Throw ratio
1.96 - 2.15:1
Optical zoom
1.1x
Zoom type
Manual
Scanning frequency
Vertical scan range
23 - 120 Hz
Horizontal scan range
15 - 102 kHz
Video
Analog signal format system
NTSC-PAL-PAL 60-SECAM
3D Ready
Yes
Supported video modes
480i-480p-576i-576p-720p-1080i-1080p
Supported graphics resolutions
640 x 480 (VGA)-720 x 480-720 x 576-800 x 600 (SVGA)-1024 x 768 (XGA)-1280 x 1024 (SXGA)-1280 x 720 (HD 720)-1280 x 800 (WXGA)-1360 x 768 (WXGA)-1366 Ñ
768-1400 x 1050 (SXGA+)-1440 x 900 (WXGA+)-1920 x 1200 (WUXGA)
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
1
RMS rated power
2 W
Ports & interfaces
HDMI connector type
Full-size
HDMI version
1.4
VGA (D-Sub) ports quantity
3
HDMI ports quantity
1
Composite video in
1
Serial interface type
RS-232
RS-232 ports
1
PC Audio out
Yes
PC Audio in
Yes
DVI port
No
AC (power) in
Yes
Network
Ethernet LAN
No
Wi-Fi
No
Storage
Card reader integrated
No
Technical details
Product colour
Grey- White
Lamp power
190 W
Performance
Vertical scan range
23 - 120 Hz
Horizontal scan range
15 - 102 kHz
Features
Certification
FCC (ICES-003)- cTUVus
Multimedia
Built-in speaker(s)
Yes
Number of built-in speakers
1
RMS rated power
2 W
Design
Product type
Standard throw projector
Cable lock slot type
Kensington
Product colour
Grey- White
Cable lock slot
Yes
Display
Built-in display
No
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Power consumption (typical)
260 W
Power consumption (standby)
0.5 W
Packaging data
Package width
365 mm
Package depth
188 mm
Package height
300 mm
Package weight
6.24 kg
Security
Cable lock slot type
Kensington
Cable lock slot
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating altitude
0 - 1499 m
Certificates
Certification
FCC (ICES-003)- cTUVus
Weight & dimensions
Package width
365 mm
Package depth
188 mm
Package height
300 mm
Weight
2.2 kg
Width
294 mm
Depth
110 mm
Height
218 mm
Package weight
6.24 kg
Packaging content
Remote control included
Yes
Quick start guide
Yes
Cables included
AC- VGA
Other features
RS-232 ports
1
Viewsonic PA503X data projector 3600 ANSI lumens DLP XGA (1024x768) Desktop projector Gray, White
| Length | 11.00 cm |
| Width | 29.40 cm |
| Height | 21.80 cm |
| Weight | 2.200000 kgs |
