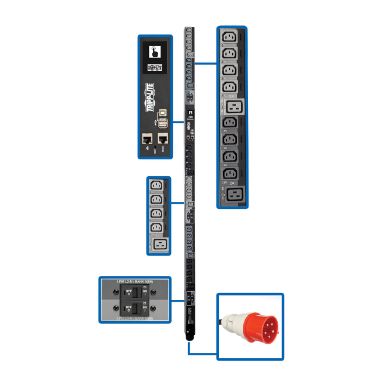

Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touc
In Stock
|
Call For Price
(0808 189 1246)
Design
Type
Three-phase
PDU types
Switched
Mounting
Vertical
Display
LCD
Product colour
Black
RoHS compliance
Yes
Rack capacity
0U
Housing material
Metal
Ports & interfaces
AC outlets quantity
30 AC outlet(s)
AC outlet types
C13 couplerC19 coupler
Power plug
IEC309
Features
Cable length
72" (1.83 m)
LED indicators
Yes
RoHS compliance
Yes
Ergonomics
Cable length
72" (1.83 m)
LED indicators
Yes
Display
LCD
Power
Maximum power
23000 W
Nominal input voltage
380-400 V
Nominal output voltage
220-230 V
Maximum current
32 A
AC input frequency
50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)
9.69 x 75.9 x 6.89" (246 x 1928 x 175 mm)
Weight
23.1 lbs (10.5 kg)
Package width
9.65" (245.1 mm)
Package depth
75.9" (1927.1 mm)
Package height
6.89" (175 mm)
Package weight
23.1 lbs (10.5 kg)
Package dimensions (WxDxH)
2.17 x 2.52 x 70" (55.1 x 64 x 1778 mm)
Packaging data
Package width
9.65" (245.1 mm)
Package depth
75.9" (1927.1 mm)
Package height
6.89" (175 mm)
Package weight
23.1 lbs (10.5 kg)
Package dimensions (WxDxH)
2.17 x 2.52 x 70" (55.1 x 64 x 1778 mm)
Packaging content
Cables included
AC
Manual
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-15 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 118110.2" (0 - 3000 m)
Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touc
| Length | 7.0000 cm |
| Width | 9.6500 cm |
| Height | 75.8700 cm |
| Weight | 1.000000 kgs |
