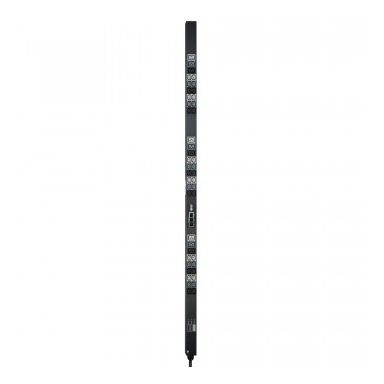

Tripp Lite 11.5kW 3-Phase Metered PDU, 240-220V (36 C13 & 9 C19), IEC-309 16/20A Red, 415-380V Input, 1.83 m Cord, 0U Vertical
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Vertical |
| Product colour | Black |
| Certification | UL CSA NOM CE |
| RoHS compliance | Yes |
| Rack capacity | 0U |
| Housing material | Steel |
| Ports & interfaces | |
| AC outlets quantity | 45 AC outlet(s) |
| AC outlet types | C13 couplerC19 coupler |
| Input connection type | IEC-309 16A RED (3P+N+E) |
| Features | |
| Cable length | 70.9" (1.8 m) |
| Certification | UL CSA NOM CE |
| RoHS compliance | Yes |
| Ergonomics | |
| Cable length | 70.9" (1.8 m) |
| Power | |
| Nominal input voltage | 380-415 V |
| Nominal output voltage | 220-240 V |
| Maximum current | 16 A |
| Load capacity | 11500 VA |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 2.2 x 1.93 x 70" (56 x 49 x 1778 mm) |
| Weight | 9.04 lbs (4.1 kg) |
| Package width | 5.5" (139.7 mm) |
| Package depth | 76" (1930.4 mm) |
| Package height | 6.5" (165.1 mm) |
| Package weight | 15.1 lbs (6.85 kg) |
| Package dimensions (WxDxH) | 4.29 x 75.8 x 6.1" (109 x 1925 x 155 mm) |
| Packaging data | |
| Package width | 5.5" (139.7 mm) |
| Package depth | 76" (1930.4 mm) |
| Package height | 6.5" (165.1 mm) |
| Package weight | 15.1 lbs (6.85 kg) |
| Package dimensions (WxDxH) | 4.29 x 75.8 x 6.1" (109 x 1925 x 155 mm) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
Tripp Lite 11.5kW 3-Phase Metered PDU, 240-220V (36 C13 & 9 C19), IEC-309 16/20A Red, 415-380V Input, 1.83 m Cord, 0U Vertical
| Length | 4.3300 cm |
| Width | 6.1000 cm |
| Height | 75.7900 cm |
| Weight | 4.100000 kgs |
