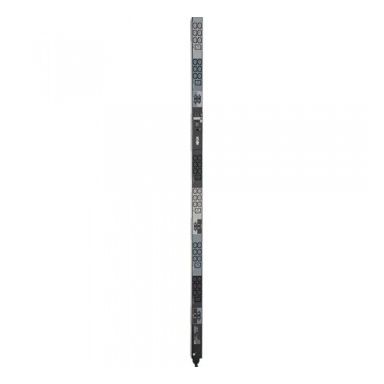

Tripp Lite 22.2kW 3-Phase Metered PDU, 220/230V, 42 outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 380/400V input, 0U
0 Reviews
| Add your review
In Stock
|
£695.98
£835.18 (Inc. VAT)
| Design | |
|---|---|
| On/off switch | Yes |
| PDU types | Metered |
| Mounting | Vertical |
| Product colour | Black |
| RoHS compliance | Yes |
| Rack capacity | 0U |
| Housing material | Metal |
| Ports & interfaces | |
| Master AC outlets quantity | 36 |
| Slave AC outlets quantity | 6 |
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 couplerC19 coupler |
| Power plug | IEC309 |
| Features | |
| Cable length | 72" (1.83 m) |
| LED indicators | Yes |
| RoHS compliance | Yes |
| Ergonomics | |
| Cable length | 72" (1.83 m) |
| LED indicators | Yes |
| Power | |
| Maximum power | 23000 W |
| Nominal input voltage | 380-400 V |
| Nominal output voltage | 200-240 V |
| Power protection features | Overload |
| Maximum current | 32 A |
| Maximum total current draw per phase | 16 A |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 2.17 x 2.49 x 70" (55.1 x 63.2 x 1778 mm) |
| Weight | 14.3 lbs (6.49 kg) |
| Package width | 5.91" (150.1 mm) |
| Package depth | 76.6" (1944.9 mm) |
| Package height | 6.89" (175 mm) |
| Package weight | 20.5 lbs (9.3 kg) |
| Package dimensions (WxDxH) | 5.91 x 6.89 x 76.6" (150 x 175 x 1945 mm) |
| Packaging data | |
| Package width | 5.91" (150.1 mm) |
| Package depth | 76.6" (1944.9 mm) |
| Package height | 6.89" (175 mm) |
| Package weight | 20.5 lbs (9.3 kg) |
| Package dimensions (WxDxH) | 5.91 x 6.89 x 76.6" (150 x 175 x 1945 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 32 - 122 °F |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
Tripp Lite 22.2kW 3-Phase Metered PDU, 220/230V, 42 outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 380/400V input, 0U
| Length | 76.5000 cm |
| Width | 7.0000 cm |
| Height | 5.8000 cm |
| Weight | 1.000000 kgs |
