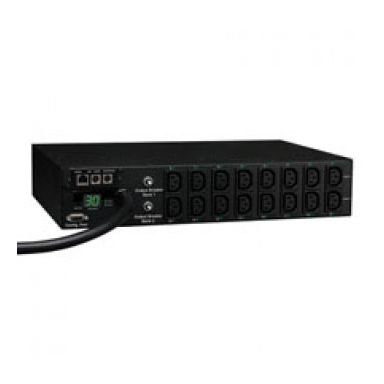

Tripp Lite 5.8kW Single-Phase Switched PDU, 208/240V Outlets (16 C13), L6-30P Input, 3.66 m (12-ft.) Cord, 2U Rack-Mount
In Stock
|
Call For Price
(0808 189 1246)
Design
PDU types
Switched
Mounting
Horizontal
Product colour
Black
Certification
UL 60950-1 Class A NOM
RoHS compliance
Yes
Rack capacity
2U
Housing material
Metal
Ports & interfaces
AC outlets quantity
16 AC outlet(s)
AC outlet types
C13 coupler
Power plug
NEMA L6-30P
Features
Cable length
141.7" (3.6 m)
Certification
UL 60950-1 Class A NOM
RoHS compliance
Yes
Ergonomics
Cable length
141.7" (3.6 m)
Power
Nominal input voltage
200-240 V
Nominal output voltage
200-240 V
Maximum current
30 A
AC input frequency
50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)
17.5 x 12.5 x 3.5" (445 x 317.5 x 89 mm)
Weight
13.9 lbs (6.3 kg)
Package width
16.7" (424.2 mm)
Package depth
19.6" (497.8 mm)
Package height
7.8" (198.1 mm)
Package weight
17 lbs (7.71 kg)
Packaging data
Package width
16.7" (424.2 mm)
Package depth
19.6" (497.8 mm)
Package height
7.8" (198.1 mm)
Package weight
17 lbs (7.71 kg)
Operational conditions
Storage temperature (T-T)
-15 - 50 °C
Operating altitude
0 - 118110.2" (0 - 3000 m)
Tripp Lite 5.8kW Single-Phase Switched PDU, 208/240V Outlets (16 C13), L6-30P Input, 3.66 m (12-ft.) Cord, 2U Rack-Mount
| Length | 17.0000 cm |
| Width | 20.5000 cm |
| Height | 8.0000 cm |
| Weight | 6.300000 kgs |
