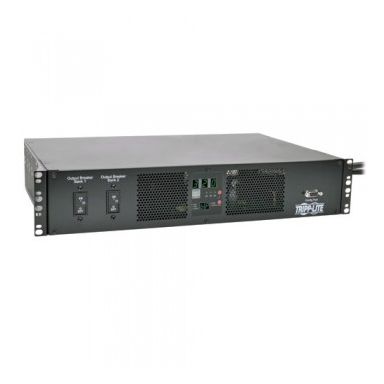

Tripp Lite Compliant 7.4kW Single-Phase ATS/Metered PDU, 230V Outlets (16 C13 & 2 C19), 2 IEC 309 32A Blue Cords, 2U Rack-Mount
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
Design | |
---|---|
Type | Single-phase |
PDU types | MeteredSwitched |
Mounting | Horizontal |
Display | LCD |
Product colour | Black |
RoHS compliance | Yes |
Rack capacity | 2U |
Housing material | Metal |
Ports & interfaces | |
AC outlets quantity | 18 AC outlet(s) |
AC outlet types | C13 couplerC19 coupler |
Power plug | IEC309 |
Features | |
Cable length | 118.1" (3 m) |
LED indicators | Yes |
RoHS compliance | Yes |
Ergonomics | |
Cable length | 118.1" (3 m) |
LED indicators | Yes |
Display | LCD |
Power | |
Maximum power | 7700 W |
Nominal input voltage | 200-240 V |
Nominal output voltage | 200-240 V |
Maximum current | 32 A |
AC input frequency | 50 - 60 Hz |
Weight & dimensions | |
Dimensions (WxDxH) | 17.5 x 12.5 x 3.46" (444 x 317 x 88 mm) |
Weight | 13.7 lbs (6.21 kg) |
Package weight | 20.3 lbs (9.2 kg) |
Package dimensions (WxDxH) | 16.7 x 19.3 x 7.72" (424 x 490 x 196 mm) |
Packaging data | |
Package weight | 20.3 lbs (9.2 kg) |
Package dimensions (WxDxH) | 16.7 x 19.3 x 7.72" (424 x 490 x 196 mm) |
Packaging content | |
Manual | Yes |
Operational conditions | |
Storage temperature (T-T) | -15 - 50 °C |
Operating relative humidity (H-H) | 5 - 95% |
Tripp Lite Compliant 7.4kW Single-Phase ATS/Metered PDU, 230V Outlets (16 C13 & 2 C19), 2 IEC 309 32A Blue Cords, 2U Rack-Mount
Length | 22.0000 cm |
Width | 18.0000 cm |
Height | 8.0000 cm |
Weight | 6.210000 kgs |
