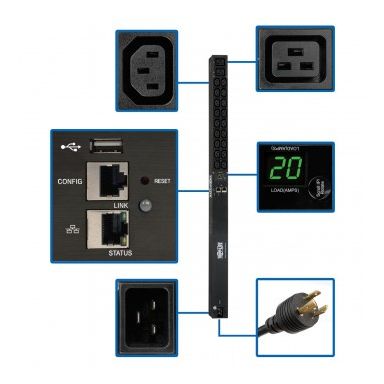

Tripp Lite 3.3/3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (18 C13/2 C19), C20/L6-20P, 0U 90 cm

Name: Tripp Lite 3.3/3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (18 C13/2 C19), C20/L6-20P, 0U 90 cm
Brand: Tripp Lite
SKU: PDUMNV20HV2LX
Availability: InStock

0 Reviews | Add your review

In Stock

Brand:	Tripp Lite
SKU:	PDUMNV20HV2LX
Condition:	NEW
Delivery:	Next Day*
Product Type:	Power Protection

Call For Price (0808 189 1246)

Design
On/off switch	Yes
Type	Single-phase
PDU types	Monitored
Mounting	Vertical
Product colour	Black
RoHS compliance	Yes
Rack capacity	0U
Ports & interfaces
Master AC outlets quantity	18
Slave AC outlets quantity	2
AC outlets quantity	20 AC outlet(s)
AC outlet types	C13 couplerC19 coupler
Power plug	NEMA L6-20P
Features
Cable length	120.1" (3.05 m)
LED indicators	Yes
RoHS compliance	Yes
Monitoring	CurrentPower
Ergonomics
Cable length	120.1" (3.05 m)
LED indicators	Yes
Power
Nominal input voltage	208-230 V
Nominal output voltage	208-230 V
Maximum current	20 A
AC input frequency	50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)	2.2 x 1.85 x 35.5" (56 x 47 x 902 mm)
Weight	6.5 lbs (2.95 kg)
Package width	6.2" (157.5 mm)
Package depth	4.5" (114.3 mm)
Package height	42" (1066.8 mm)
Package weight	11.5 lbs (5.22 kg)
Package dimensions (WxDxH)	6.18 x 4.49 x 42" (157 x 114 x 1067 mm)
Packaging data
Package width	6.2" (157.5 mm)
Package depth	4.5" (114.3 mm)
Package height	42" (1066.8 mm)
Package weight	11.5 lbs (5.22 kg)
Package dimensions (WxDxH)	6.18 x 4.49 x 42" (157 x 114 x 1067 mm)
Packaging content
Cables included	AC
Manual	Yes
Operational conditions
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
