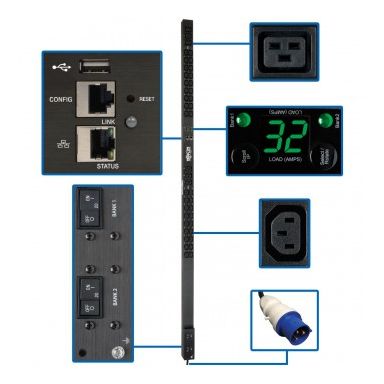

Tripp Lite 7.4kW Single-Phase Monitored PDU, LX Interface, 230V Outlets (36 C13/6 C19), IEC 309 32A Blue, 3.05 m Cord, 0U 1.8m Height
In Stock
|
Call For Price
(0808 189 1246)
Design
PDU types
Monitored
Mounting
Vertical
Display
LCD
Product colour
Black
Certification
IEC60950-1
RoHS compliance
Yes
Rack capacity
0U
Ports & interfaces
AC outlets quantity
42 AC outlet(s)
AC outlet types
C13 couplerC19 coupler
Power plug
IEC309
Output connections
36 x C13 & 6 x C19
Features
Cable length
118.1" (3 m)
LED indicators
Yes
Certification
IEC60950-1
RoHS compliance
Yes
Management features
Management platform
Web SNMP Telnet
Ergonomics
Cable length
118.1" (3 m)
LED indicators
Yes
Display
LCD
Power
Nominal input voltage
200-240 V
Nominal output voltage
200-240 V
Power protection features
Overload
Maximum current
32 A
Weight & dimensions
Dimensions (WxDxH)
2.2 x 2.64 x 70" (56 x 67 x 1778 mm)
Weight
9.7 lbs (4.4 kg)
Package width
6.4" (162.6 mm)
Package depth
73" (1854.2 mm)
Package height
5.2" (132.1 mm)
Package weight
14.7 lbs (6.67 kg)
Package dimensions (WxDxH)
6.61 x 5.39 x 73.3" (168 x 137 x 1862 mm)
Packaging data
Package width
6.4" (162.6 mm)
Package depth
73" (1854.2 mm)
Package height
5.2" (132.1 mm)
Package weight
14.7 lbs (6.67 kg)
Package dimensions (WxDxH)
6.61 x 5.39 x 73.3" (168 x 137 x 1862 mm)
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Tripp Lite 7.4kW Single-Phase Monitored PDU, LX Interface, 230V Outlets (36 C13/6 C19), IEC 309 32A Blue, 3.05 m Cord, 0U 1.8m Height
| Length | 73.5000 cm |
| Width | 6.5000 cm |
| Height | 5.5000 cm |
| Weight | 4.400000 kgs |
