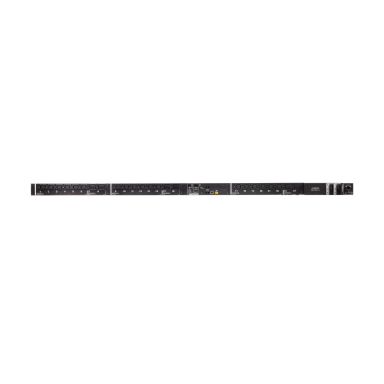

Aten 30a/32a 24-Outlet Outlet-Metered & Switched Pdu
In Stock
|
$1217.42
$1460.90 (Inc. VAT)
Design
On/off switch
Yes
PDU types
Metered- Switched
Product colour
Black
Ports & interfaces
AC outlets quantity
24 AC outlet(s)
AC outlet types
C13 coupler- C19 coupler
Power plug
IEC 60309
Ethernet LAN (RJ-45) ports
1
Features
Cable length
1.6 m
Security algorithms
128-bit SSL-802.1x RADIUS
Management features
Supported network protocols
TCP / IP- UDP- HTTP- HTTPS- SSL- DHCP- ARP- NTP- DNS- Telnet- Auto Sense- Ping- SNMP V1-V2- V3
Monitoring
Current- Humidity- Power- Temperature- Voltage
Outlet control
Turn off- Turn on
Ergonomics
Cable length
1.6 m
Power
Nominal input voltage
100 - 240 V
Output voltage
100 - 240 V
Maximum current
32 A
Maximum total current draw per phase
32 A
Load capacity
7360 VA
AC input frequency
50 - 60 Hz
Block 1 output current
15 A
Block 2 output current
15 A
Weight & dimensions
Weight
6.33 kg
Width
66 mm
Depth
177.5 mm
Height
44 mm
Package width
229 mm
Package depth
1865 mm
Package height
179 mm
Package volume
76455.49 cm³
Package weight
9.38 kg
Packaging data
Package width
229 mm
Package depth
1865 mm
Package height
179 mm
Package volume
76455.49 cm³
Package weight
9.38 kg
Packaging content
Manual
Yes
Rack mount kit
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Technical details
Sustainability certificates
CE
Security
Security algorithms
128-bit SSL-802.1x RADIUS
Logistics data
Master (outer) case width
229 mm
Master (outer) case length
1865 mm
Master (outer) case height
179 mm
Master (outer) case gross weight
9.37 kg
Master (outer) case volume
76455.49 cm³
Country of origin
Taiwan
Master (outer) case net weight
6.72 kg
Aten 30a/32a 24-Outlet Outlet-Metered & Switched Pdu
