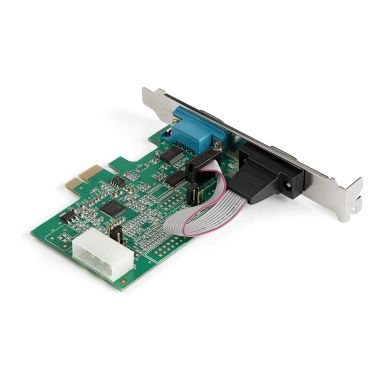

StarTech.com 2-Port PCI Express RS232 Serial Adapter Card - 16950 UART - 256-byte FIFO Cache - ASIX AX99100 - Full Profile Bracket - Replacement for PEX2S952 (PEX2S953)
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Internal
Yes
Output interface
Serial
Serial interface type
RS-232
Serial ports quantity
2
Host interface
PCIe
Expansion card standard
PCIe 1.1
Technical details
Chipset
Asix AX99100
FIFO (First In- First Out)
256 B
Sustainability compliance
Yes
Sustainability certificates
CE- RoHS
Performance
Stop bits
1- 1.5- 2
Data bits
5- 6- 7- 8- 9
Baud rate
921.6 Kbit/s
Chipset
Asix AX99100
FIFO (First In- First Out)
256 B
Product colour
Green
Harmonized System (HS) code
84733020
Colour
Product colour
Green
Design
Mean time between failures (MTBF)
222366 h
Internal
Yes
Product colour
Green
Features
Stop bits
1- 1.5- 2
Data bits
5- 6- 7- 8- 9
Baud rate
921.6 Kbit/s
Chipset
Asix AX99100
FIFO (First In- First Out)
256 B
Parity bit
Even- Mark- N- Odd- Space
Flow Control type
N- RTS/CTS- XON/XOFF
Harmonized System (HS) code
84733020
Operational conditions
Operating temperature (T-T)
-10 - 80 °C
Storage temperature (T-T)
-20 - 100 °C
Operating relative humidity (H-H)
5 - 85%
System requirements
Windows operating systems supported
Windows 10- Windows 10 Education- Windows 10 Education x64- Windows 10 Enterprise- Windows 10 Enterprise x64- Windows 10 Home- Windows 10 Home x64- Windows 10 IOT Core- Windows 10 Pro- Windows 10 Pro x64- Windows 10 x64- Windows 7- Windows 7 Enterprise- Windows 7 Enterprise x64- Windows 7 Home Basic- Windows 7 Home Basic x64- Windows 7 Home Premium- Windows 7 Home Premium x64- Windows 7 Professional- Windows 7 Professional x64- Windows 7 Starter- Windows 7 Starter x64- Windows 7 Ultimate- Windows 7 Ultimate x64- Windows 7 x64- Windows 8- Windows 8 Enterprise- Windows 8 Enterprise x64- Windows 8 Pro- Windows 8 Pro x64- Windows 8 x64- Windows 8.1- Windows 8.1 Enterprise- Windows 8.1 Enterprise x64- Windows 8.1 Pro- Windows 8.1 Pro x64- Windows 8.1 x64
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2003- Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016
Weight & dimensions
Width
63 mm
Depth
75 mm
Height
15 mm
Weight
56 g
Package width
170 mm
Package depth
142 mm
Package height
30 mm
Package weight
136 g
Packaging data
Package width
170 mm
Package depth
142 mm
Package height
30 mm
Package weight
136 g
Quick installation guide
Yes
Quantity
1
Logistics data
Products per master (outer) case
75 pc(s)
Master (outer) case width
685 mm
Master (outer) case length
345 mm
Master (outer) case height
306 mm
Harmonized System (HS) code
84733020
Packaging content
Quick installation guide
Yes
Quantity
1
Other features
Chipset
Asix AX99100
StarTech.com 2-Port PCI Express RS232 Serial Adapter Card - 16950 UART - 256-byte FIFO Cache - ASIX AX99100 - Full Profile Bracket - Replacement for PEX2S952 (PEX2S953)
