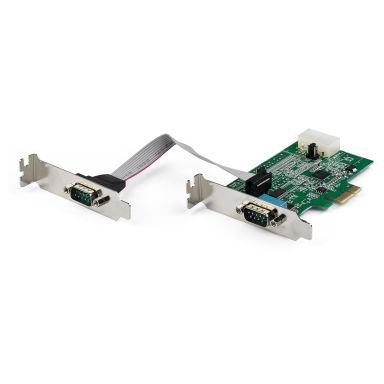

StarTech.com 2-Port RS232 Serial Adapter Card with 16950 UART
In Stock
|
$50.96
$61.15 (Inc. VAT)
Ports & interfaces
Internal
Yes
Output interface
Serial
Serial interface type
RS-232
Serial ports quantity
2
Peripheral (Molex) power connectors (4-pin)
1
Host interface
Mini PCI Express
Expansion card standard
PCIe 1.1
Technical details
Chipset
Asix AX99100
FIFO (First In- First Out)
256 B
Sustainability certificates
RoHS
Performance
Stop bits
1- 1.5- 2
Data bits
5- 6- 7- 8- 9
Baud rate
921.6 Kbit/s
Chipset
Asix AX99100
FIFO (First In- First Out)
256 B
Harmonized System (HS) code
84733020
Certificates
Certification
CE- FCC
Design
Mean time between failures (MTBF)
222366 h
Internal
Yes
Certification
CE- FCC
Features
Stop bits
1- 1.5- 2
Data bits
5- 6- 7- 8- 9
Baud rate
921.6 Kbit/s
Chipset
Asix AX99100
FIFO (First In- First Out)
256 B
Parity bit
Even- Mark- N- Odd- Space
Flow Control type
N- RTS/CTS- XON/XOFF
Harmonized System (HS) code
84733020
Operational conditions
Operating temperature (T-T)
-10 - 80 °C
Storage temperature (T-T)
-20 - 100 °C
Operating relative humidity (H-H)
5 - 85%
System requirements
Windows operating systems supported
Windows 10- Windows 10 Education- Windows 10 Education x64- Windows 10 Enterprise- Windows 10 Enterprise x64- Windows 10 Home- Windows 10 Home x64- Windows 10 IOT Core- Windows 10 IoT Enterprise- Windows 10 Pro- Windows 10 Pro x64- Windows 10 x64- Windows 7- Windows 7 Enterprise- Windows 7 Enterprise x64- Windows 7 Home Basic- Windows 7 Home Basic x64- Windows 7 Home Premium- Windows 7 Home Premium x64- Windows 7 Professional- Windows 7 Professional x64- Windows 7 Starter- Windows 7 Starter x64- Windows 7 Ultimate- Windows 7 Ultimate x64- Windows 7 x64- Windows 8- Windows 8 Enterprise- Windows 8 Enterprise x64- Windows 8 Pro- Windows 8 Pro x64- Windows 8 x64- Windows 8.1- Windows 8.1 Enterprise- Windows 8.1 Enterprise x64- Windows 8.1 Pro- Windows 8.1 Pro x64- Windows 8.1 x64
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2003- Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016
Weight & dimensions
Width
67 mm
Depth
98 mm
Height
18 mm
Weight
55.6 g
Package width
142 mm
Package depth
172 mm
Package height
32 mm
Package weight
146.4 g
Packaging data
Mounting brackets included
Yes
Manual
Yes
Package width
142 mm
Package depth
172 mm
Package height
32 mm
Package weight
146.4 g
Quantity
1
Logistics data
Products per master (outer) case
75 pc(s)
Master (outer) case width
355 mm
Master (outer) case length
690 mm
Master (outer) case height
317 mm
Harmonized System (HS) code
84733020
Packaging content
Mounting brackets included
Yes
Manual
Yes
Quantity
1
Other features
Chipset
Asix AX99100
StarTech.com 2-Port RS232 Serial Adapter Card with 16950 UART
