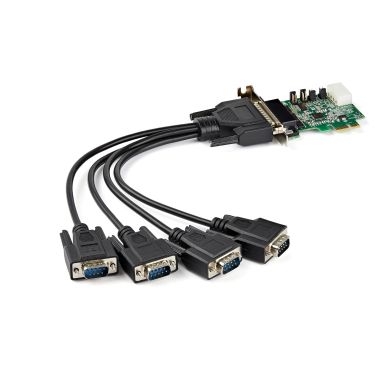

StarTech.com 4-Port PCI Express RS232 Serial Adapter Card - 16950 UART - 256-byte FIFO Cache - ASIX AX99100 - Low Profile Bracket - Replacement for PEX4S952LP (PEX4S953LP)
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Internal
Yes
Output interface
Serial
Host interface
PCIe
Expansion card standard
PCIe 1.1
Technical details
Chipset
Asix AX99100
FIFO (First In- First Out)
256 B
Sustainability certificates
RoHS
Performance
Stop bits
1-1.5-2
Data bits
5-6-7-8-9
Baud rate
921.6 Kbit/s
Chipset
Asix AX99100
FIFO (First In- First Out)
256 B
Product colour
Green
Certificates
Certification
CE- FCC
Colour
Product colour
Green
Design
Mean time between failures (MTBF)
214358 h
Internal
Yes
Product colour
Green
Certification
CE- FCC
Features
Stop bits
1-1.5-2
Data bits
5-6-7-8-9
Baud rate
921.6 Kbit/s
Chipset
Asix AX99100
FIFO (First In- First Out)
256 B
Parity bit
Even- Mark- N- Odd- Space
Flow Control type
N- RTS/CTS- XON/XOFF
Operational conditions
Operating temperature (T-T)
-10 - 80 °C
Storage temperature (T-T)
-20 - 100 °C
Operating relative humidity (H-H)
5 - 85%
System requirements
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Weight & dimensions
Width
75 mm
Depth
63 mm
Height
18 mm
Weight
264 g
Package width
213 mm
Package depth
149 mm
Package height
51 mm
Package weight
370 g
Packaging data
Mounting brackets included
Yes
Package width
213 mm
Package depth
149 mm
Package height
51 mm
Package weight
370 g
Cables included
Serial
Quick installation guide
Yes
Quantity
1
Logistics data
Quantity per master (outer) case
16 pc(s)
Master (outer) case width
48 cm
Master (outer) case length
35 cm
Master (outer) case height
23.5 cm
Packaging content
Mounting brackets included
Yes
Cables included
Serial
Quick installation guide
Yes
Quantity
1
Other features
Chipset
Asix AX99100
StarTech.com 4-Port PCI Express RS232 Serial Adapter Card - 16950 UART - 256-byte FIFO Cache - ASIX AX99100 - Low Profile Bracket - Replacement for PEX4S952LP (PEX4S953LP)
