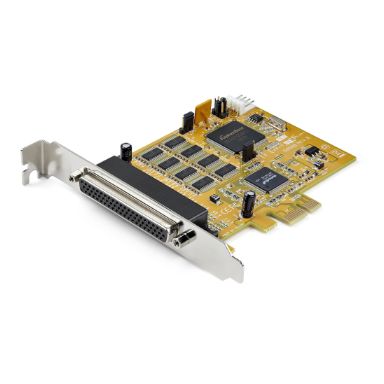

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART -
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Internal
Yes
Output interface
Serial
Serial interface type
RS-232
Serial ports quantity
8
Host interface
PCIe
Technical details
Chipset
ASMedia - ASM1083- System Base - SB16C1058PCI
FIFO (First In- First Out)
256 B
Sustainability certificates
RoHS
Performance
Maximum cable length
0.5 m
Stop bits
1-1.5-2
Data bits
5-6-7-8
Baud rate
921.6 Kbit/s
Chipset
ASMedia - ASM1083- System Base - SB16C1058PCI
FIFO (First In- First Out)
256 B
Product colour
Yellow
Colour
Product colour
Yellow
Design
Mean time between failures (MTBF)
160013 h
Maximum cable length
0.5 m
Internal
Yes
Product colour
Yellow
Features
Stop bits
1-1.5-2
Data bits
5-6-7-8
Baud rate
921.6 Kbit/s
Chipset
ASMedia - ASM1083- System Base - SB16C1058PCI
FIFO (First In- First Out)
256 B
Parity bit
Even- N- Odd
Flow Control type
RTS/CTS-XON/XOFF
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
System requirements
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 IoT Enterprise-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 2000-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64-Windows 98SE-Windows CE-Windows Vista-Windows Vista Business-Windows Vista Business x64-Windows Vista Enterprise-Windows Vista Enterprise x64-Windows Vista Home Basic-Windows Vista Home Basic x64-Windows Vista Home Premium-Windows Vista Home Premium x64-Windows Vista Ultimate-Windows Vista Ultimate x64-Windows Vista x64-Windows XP-Windows XP Home-Windows XP Home x64-Windows XP Professional-Windows XP Professional x64
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2016-Windows Server 2019
Weight & dimensions
Width
16 mm
Depth
105 mm
Height
120 mm
Weight
74 g
Package width
190 mm
Package depth
290 mm
Package height
65 mm
Package weight
672 g
Packaging data
Package width
190 mm
Package depth
290 mm
Package height
65 mm
Package weight
672 g
Cables included
Serial
Quick installation guide
Yes
Logistics data
Quantity per master (outer) case
14 pc(s)
Master (outer) case width
40 cm
Master (outer) case length
51 cm
Master (outer) case height
31.5 cm
Other features
Compliance industry standards
16C1050 UART
Chipset
ASMedia - ASM1083- System Base - SB16C1058PCI
Packaging content
Cables included
Serial
Quick installation guide
Yes
StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART -
