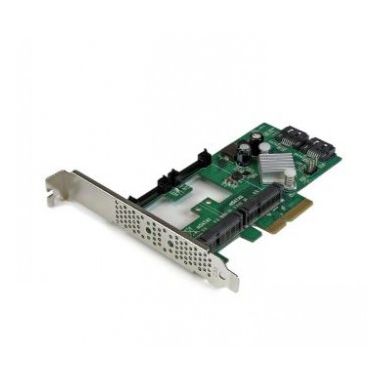

StarTech.com 2-Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with 2 mSATA Slots and HyperDuo SSD Tiering

Supported storage drive interfaces

Serial ATA- Serial ATA II- Serial ATA III

Port multiplier

Yes

Internal mSATA ports quantity

2

Host interface

PCI Express x4

PCI Express slots version

2.0

PCI Card form factor

Full-height (low-profile)

RAID levels

0-1-JBOD

SSD support

Yes

Chipset

Marvell - 88SE9230

Logical block addressing (LBA) support

48 bit

Data transfer rate

6 Gbit/s

Certification

RoHS- CE- FCC

Maximum supported storage capacity

4 TB

Data transfer rate

6 Gbit/s

Package weight

160 g

Package dimensions (WxDxH)

170 x 142 x 30 mm

RAID levels

0-1-JBOD

SSD support

Yes

Chipset

Marvell - 88SE9230

Logical block addressing (LBA) support

48 bit

Certification

RoHS- CE- FCC

Server operating systems supported

Windows Server 2003-Windows Server 2008 R2-Windows Server 2012

Windows operating systems supported

Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 Pro-Windows 10 Pro x64-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64-Windows Vista Business-Windows Vista Business x64-Windows Vista Enterprise-Windows Vista Enterprise x64-Windows Vista Home Basic-Windows Vista Home Basic x64-Windows Vista Home Premium-Windows Vista Home Premium x64-Windows Vista Ultimate-Windows Vista Ultimate x64-Windows XP Home-Windows XP Home x64-Windows XP Professional-Windows XP Professional x64

Mac operating systems supported

Mac OS X 10.10 Yosemite-Mac OS X 10.11 El Capitan-Mac OS X 10.6 Snow Leopard-Mac OS X 10.7 Lion-Mac OS X 10.8 Mountain Lion-Mac OS X 10.9 Mavericks

Linux operating systems supported

Yes

Operating temperature (T-T)

5 - 50 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

20 - 80%

Package width

144 mm

Package depth

174 mm

Package height

32 mm

Package weight

160 g

Package dimensions (WxDxH)

170 x 142 x 30 mm

Width

20 mm

Depth

125 mm

Height

120 mm

Weight

60 g

Manual

Yes

Drivers included

Yes

Manual

Yes

Drivers included

Yes

Internal mSATA ports quantity

2

PCI Card form factor

Full-height (low-profile)

Maximum supported storage capacity

4 TB
