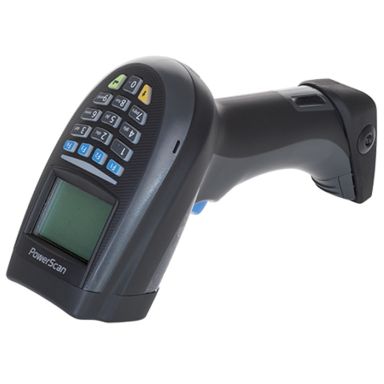

Datalogic PowerScan 9501 Retail Handheld bar code reader 1D/2D Laser Black, Grey
Out of Stock
|
Call For Price (0808 189 1246)
Scanning
Type
Handheld bar code reader
Linear (1D) barcodes supported
EAN-13, GS1 DataBar, JAN, Planet, POSTNET, RM4SCC / KIX, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, QR Code
Yaw reading angle
-40 - 40°
Tilt reading angle
0 - 360°
Sensor type
Laser
Scanner type
1D/2D
Pitch reading angle
-40 - 40°
Light levels (direct sunlight)
0 - 100000 lx
Optical sensor resolution (W x H)
864 x 544 pixels
Ports & interfaces
Wireless range
80 m
Connectivity technology
Wired & Wireless
Operating frequency
433 MHz
Standard interfaces
RS-232, USB
Performance
Protection features
Shock resistant
Keys quantity
16 keys
Housing material
Plastic
Built-in display
Yes
Backlight display
Yes
International Protection (IP) code
IP65
Display resolution
132 x 48 pixels
Product colour
Black, Grey
Certification
R.E.A.C.H.
Buzzer
Yes
Light levels (direct sunlight)
0 - 100000 lx
Design
Type
Handheld bar code reader
Protection features
Shock resistant
Keys quantity
16 keys
Housing material
Plastic
International Protection (IP) code
IP65
Product colour
Black, Grey
Certification
R.E.A.C.H.
Power
Power consumption
500 mA
Power source type
Battery, DC
Power consumption (typical)
8 W
Charging time
4.5 h
Number of reads per charge
60000
Input voltage
10 V
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
3350 mAh
Weight & dimensions
Width
110 mm
Depth
74 mm
Height
212 mm
Weight
440 g
Technical details
Type
Handheld bar code reader
Protection features
Shock resistant
Keys quantity
16 keys
Housing material
Plastic
Built-in display
Yes
Backlight display
Yes
International Protection (IP) code
IP65
Display resolution
132 x 48 pixels
Product colour
Black, Grey
Certification
R.E.A.C.H.
Buzzer
Yes
Sustainability certificates
RoHS
Harmonized System (HS) code
84716070
Compliance certificates
RoHS
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Light levels (direct sunlight)
0 - 100000 lx
Logistics data
Harmonized System (HS) code
84716070
Datalogic PowerScan 9501 Retail Handheld bar code reader 1D/2D Laser Black, Grey
| Weight | 0.44 kgs |
