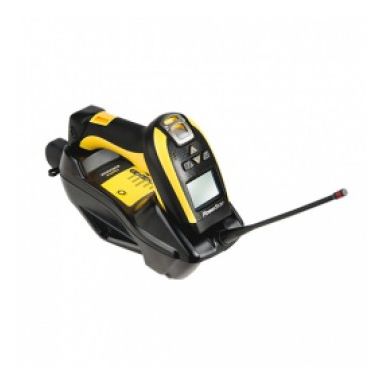

Datalogic Datalogic PM9501 EVO, 2D, DPM, disp., RB
In Stock
|
$973.12
$1167.74 (Inc. VAT)
Scanning
Scanner resolution
0.1016 mm
Type
Handheld bar code reader
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Yaw reading angle
-40 - 40°
Wavelength
680 nm
Tilt reading angle
0 - 360°
Sensor type
LED
Scanner type
1D/2D
Pitch reading angle
-40 - 40°
Light levels (direct sunlight)
0 - 100000 lx
Optical sensor resolution (W x H)
864 x 544 pixels
Ports & interfaces
Wireless range
200 m
Connectivity technology
Wired & Wireless
Operating frequency
433 MHz
Standard interfaces
RF Wireless
Performance
LED indicators
Yes
Keys quantity
4 keys
Display technology
LCD
Built-in display
Yes
Backlight display
Yes
International Protection (IP) code
IP65
Display resolution
48 x 132 pixels
Product colour
Black, Yellow
Certification
IEC 62471
Buzzer
Yes
Ambient lighting
Yes
Print contrast
15%
Light levels (direct sunlight)
0 - 100000 lx
Design
Type
Handheld bar code reader
LED indicators
Yes
Keys quantity
4 keys
International Protection (IP) code
IP65
Product colour
Black, Yellow
Certification
IEC 62471
Power
Power consumption
500 mA
Power source type
DC
Power consumption (typical)
8 W
Battery life
10 h
Charging time
4.5 h
Battery voltage
5 V
Number of reads per charge
60000
Input voltage
10-30 V
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
3350 mAh
Weight & dimensions
Weight
440 g
Technical details
Type
Handheld bar code reader
LED indicators
Yes
Keys quantity
4 keys
Display technology
LCD
Built-in display
Yes
Backlight display
Yes
International Protection (IP) code
IP65
Display resolution
48 x 132 pixels
Product colour
Black, Yellow
Certification
IEC 62471
Buzzer
Yes
Sustainability certificates
REACH, RoHS
Harmonized System (HS) code
84716070
Warranty period
3 year(s)
Compliance certificates
REACH, RoHS
Packaging data
Charging base
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Light levels (direct sunlight)
0 - 100000 lx
Packaging content
Charging base
Yes
Logistics data
Harmonized System (HS) code
84716070
