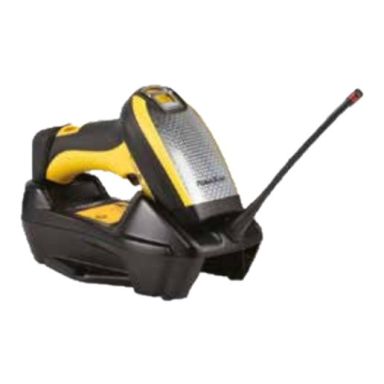

Datalogic Datalogic PM9501, 2D, HD, DPM, multi-IF, kit (USB), RB
In Stock
|
$1099.99
$1319.99 (Inc. VAT)
Scanning
Scanner resolution
0.1778 mm
Type
Handheld bar code reader
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Yaw reading angle
-40 - 40°
Tilt reading angle
0 - 360°
Sensor type
LED
Scanner type
1D/2D
Pitch reading angle
-40 - 40°
Light levels (direct sunlight)
0 - 100000 lx
Optical sensor resolution (W x H)
864 x 544 pixels
Ports & interfaces
Wireless range
200 m
Connectivity technology
Wired & Wireless
Operating frequency
433 MHz
Standard interfaces
RF Wireless, USB
Performance
LED indicators
Yes
International Protection (IP) code
IP65
Product colour
Black, Yellow
Certification
IEC 62471
Buzzer
Yes
Print contrast
15%
Light levels (direct sunlight)
0 - 100000 lx
Design
Type
Handheld bar code reader
LED indicators
Yes
International Protection (IP) code
IP65
Product colour
Black, Yellow
Certification
IEC 62471
Power
Power consumption
500 mA
Power source type
DC
Battery life
10 h
Charging time
4.5 h
Number of reads per charge
60000
Input voltage
10-30 V
Battery type
Built-in battery
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
3350 mAh
Weight & dimensions
Weight
440 g
Technical details
Type
Handheld bar code reader
LED indicators
Yes
International Protection (IP) code
IP65
Product colour
Black, Yellow
Certification
IEC 62471
Buzzer
Yes
Sustainability certificates
REACH, RoHS
Harmonized System (HS) code
84716070
Warranty period
3 year(s)
Compliance certificates
REACH, RoHS
Packaging data
Charging base
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Light levels (direct sunlight)
0 - 100000 lx
Packaging content
Charging base
Yes
Logistics data
Harmonized System (HS) code
84716070
