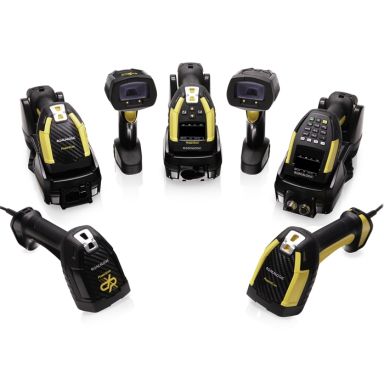

Datalogic PM9600-DDPX433RK10 barcode reader Handheld bar code reader 1D/2D Black, Yellow
In Stock
|
$1696.43
$2035.72 (Inc. VAT)
Scanning
Type
Handheld bar code reader
Linear (1D) barcodes supported
Code 128, Code 39, GS1 DataBar, JAN, PDF417, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported
Aztec Code, Code 39, Data Matrix, Dot Code A, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417
Yaw reading angle
-52 - 52°
Wavelength
680 nm
Tilt reading angle
0 - 360°
Scanner type
1D/2D
Pitch reading angle
-52 - 52°
Light levels (direct sunlight)
0 - 100000 lx
Optical sensor resolution (W x H)
1280 x 800 pixels
Ports & interfaces
Wireless range
150 m
Connectivity technology
Wireless
Operating frequency
433 MHz
Standard interfaces
RF Wireless, RS-232, USB
Performance
Keys quantity
4 keys
Display technology
OLED
Built-in display
Yes
International Protection (IP) code
IP65, IP67
Product colour
Black, Yellow
Display diagonal
4.57 cm (1.8")
Light levels (direct sunlight)
0 - 100000 lx
Design
Type
Handheld bar code reader
Keys quantity
4 keys
International Protection (IP) code
IP65, IP67
Product colour
Black, Yellow
Power
Power source type
Battery
Charging time
3.2 h
Number of reads per charge
80000
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
3350 mAh
Weight & dimensions
Width
79 mm
Depth
140 mm
Height
198 mm
Technical details
Type
Handheld bar code reader
Keys quantity
4 keys
Display technology
OLED
Built-in display
Yes
International Protection (IP) code
IP65, IP67
Product colour
Black, Yellow
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-20 - 50 °C
Storage relative humidity (H-H)
0 - 95%
Light levels (direct sunlight)
0 - 100000 lx
Datalogic PM9600-DDPX433RK10 barcode reader Handheld bar code reader 1D/2D Black, Yellow
