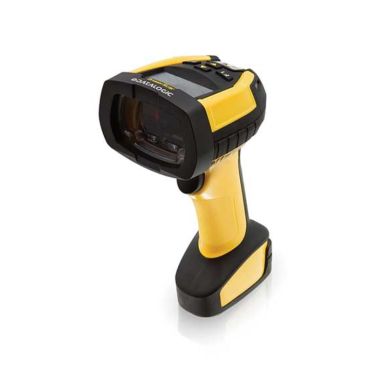

Datalogic PM9600-DHP433RB barcode reader Handheld bar code reader 1D/2D Laser Black, Yellow

Datalogic PM9600-DHP433RB barcode reader Handheld bar code reader 1D/2D Laser Black, Yellow

In Stock In Stock
Brand: Datalogic
SKU: PM9600-DHP433RB
Condition: NEW
Delivery: Next Day*
Product Type: Barcode
$724.35
$869.22 (Inc. VAT)
Scanning
Type
Handheld bar code reader
Linear (1D) barcodes supported
China Post, Code 128, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Yaw reading angle
-52 - 52°
Wavelength
630 nm
Tilt reading angle
0 - 360°
Sensor type
Laser
Scanner type
1D/2D
Pitch reading angle
-52 - 52°
Light levels (direct sunlight)
0 - 100000 lx
Optical sensor resolution (W x H)
1280 x 800 pixels
Ports & interfaces
Connectivity technology
Wired & Wireless
Operating frequency
433 MHz
Standard interfaces
RS-232, USB
Performance
Protection features
Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant
LED indicators
Yes
Keys quantity
4 keys
Display technology
OLED
Built-in display
Yes
International Protection (IP) code
IP65, IP67
Product colour
Black, Yellow
Buzzer
Yes
Display diagonal
4.57 cm (1.8")
Print contrast
15%
Vibration function
Yes
Light levels (direct sunlight)
0 - 100000 lx
Design
Type
Handheld bar code reader
Protection features
Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant
LED indicators
Yes
Keys quantity
4 keys
International Protection (IP) code
IP65, IP67
Product colour
Black, Yellow
Power
Power consumption
480 mA
Power source type
Battery
Power consumption (typical)
15 W
Number of batteries supported
1
Charging time
3.2 h
Battery voltage
3.7 V
Number of reads per charge
80000
Input voltage
5 V
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
3350 mAh
AC adapter output voltage
5 V
Weight & dimensions
Width
79 mm
Depth
140 mm
Height
149 mm
Weight
445 g
Technical details
Type
Handheld bar code reader
Protection features
Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant
LED indicators
Yes
Keys quantity
4 keys
Display technology
OLED
Built-in display
Yes
International Protection (IP) code
IP65, IP67
Product colour
Black, Yellow
Buzzer
Yes
Sustainability certificates
REACH, RoHS
Harmonized System (HS) code
84716070
Compliance certificates
REACH, RoHS
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Light levels (direct sunlight)
0 - 100000 lx
Logistics data
Harmonized System (HS) code
84716070
