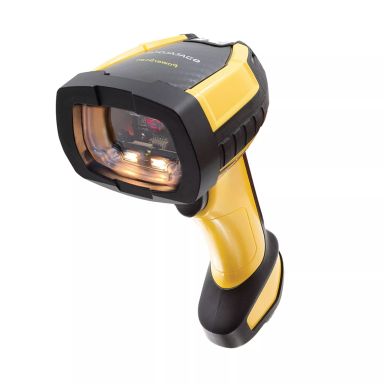

Datalogic PM9600-SR433RBK10 barcode reader Handheld bar code reader 1D/2D Laser Black, Yellow
In Stock
|
$872.75
$1047.30 (Inc. VAT)
Scanning
Type
Handheld bar code reader
Linear (1D) barcodes supported
Codabar, Code 128, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, PDF417, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Yaw reading angle
-52 - 52°
Wavelength
630 nm
Tilt reading angle
0 - 360°
Sensor type
Laser
Scanner type
1D/2D
Pitch reading angle
-52 - 52°
Light levels (direct sunlight)
0 - 100000 lx
Optical sensor resolution (W x H)
1280 x 800 pixels
Ports & interfaces
Connectivity technology
Wired & Wireless
Operating frequency
433 MHz
Standard interfaces
USB
Performance
Protection features
Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant
LED indicators
Yes
International Protection (IP) code
IP65, IP67
Product colour
Black, Yellow
Buzzer
Yes
Print contrast
15%
Vibration function
Yes
Light levels (direct sunlight)
0 - 100000 lx
Design
Type
Handheld bar code reader
Protection features
Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant
LED indicators
Yes
International Protection (IP) code
IP65, IP67
Product colour
Black, Yellow
Power
Power consumption
480 mA
Power source type
Battery
Power consumption (typical)
15 W
Number of batteries supported
1
Charging time
3.2 h
Battery voltage
3.7 V
Number of reads per charge
80000
Input voltage
5 V
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
3350 mAh
AC adapter output voltage
5 V
Weight & dimensions
Width
79 mm
Depth
140 mm
Height
198 mm
Weight
425 g
Technical details
Type
Handheld bar code reader
Protection features
Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant
LED indicators
Yes
International Protection (IP) code
IP65, IP67
Product colour
Black, Yellow
Buzzer
Yes
Sustainability certificates
REACH, RoHS
Harmonized System (HS) code
84716070
Compliance certificates
REACH, RoHS
Packaging data
Charging base
Yes
Cables included
AC, USB
External power adapter
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Light levels (direct sunlight)
0 - 100000 lx
Packaging content
Charging base
Yes
Cables included
AC, USB
External power adapter
Yes
Logistics data
Harmonized System (HS) code
84716070
Datalogic PM9600-SR433RBK10 barcode reader Handheld bar code reader 1D/2D Laser Black, Yellow
