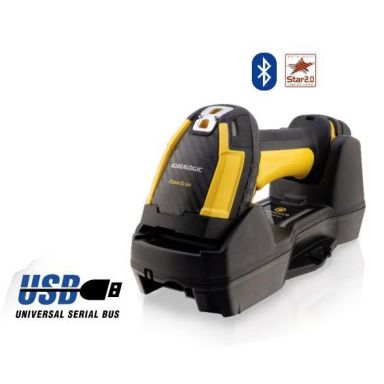

Datalogic PM9600-SR433RBK12 barcode reader Handheld bar code reader 1D/2D Black, Yellow
In Stock
|
$838.56
$1006.27 (Inc. VAT)
Scanning
Type
Handheld bar code reader
Linear (1D) barcodes supported
Code 128, Code 39, GS1 DataBar, JAN, PDF417, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported
Aztec Code, Code 39, Data Matrix, Dot Code A, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417
Yaw reading angle
-52 - 52°
Wavelength
680 nm
Tilt reading angle
0 - 360°
Scanner type
1D/2D
Pitch reading angle
-52 - 52°
Light levels (direct sunlight)
0 - 100000 lx
Optical sensor resolution (W x H)
1280 x 800 pixels
Ports & interfaces
Wireless range
150 m
Connectivity technology
Wireless
Operating frequency
433 MHz
Standard interfaces
RF Wireless, RS-232, USB
Performance
International Protection (IP) code
IP65, IP67
Product colour
Black, Yellow
Light levels (direct sunlight)
0 - 100000 lx
Design
Type
Handheld bar code reader
International Protection (IP) code
IP65, IP67
Product colour
Black, Yellow
Power
Power source type
Battery
Charging time
3.2 h
Number of reads per charge
80000
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
3350 mAh
Weight & dimensions
Width
79 mm
Depth
140 mm
Height
198 mm
Technical details
Type
Handheld bar code reader
International Protection (IP) code
IP65, IP67
Product colour
Black, Yellow
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-20 - 50 °C
Storage relative humidity (H-H)
0 - 95%
Light levels (direct sunlight)
0 - 100000 lx
Datalogic PM9600-SR433RBK12 barcode reader Handheld bar code reader 1D/2D Black, Yellow
