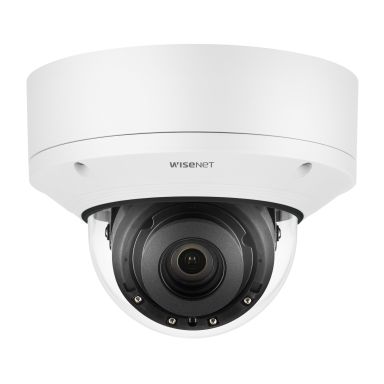

Hanwha PND-A9081RV security camera Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling
In Stock
|
Call For Price
(0808 189 1246)
Performance
Auto pan mode
Yes
Infrared (IR) cut-off filter
Yes
Type
IP security camera
Connectivity technology
Wired & Wireless
Placement supported
Indoor & outdoor
Auto-tracking
Yes
Tour recording
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
People counting function
Yes
Design
IK code
IK10
Form factor
Dome
Product colour
White
Mounting type
Ceiling
International Protection (IP) code
IP52
Housing material
Aluminium
Camera
Minimum illumination
0.05 lx
Field of view (FOV) angle
120.7°
Tilt angle range
-45 - 85°
Pan range
0 - 360°
White balance
ATW, AWC, Indoor, Manual, Outdoor
Camera shutter type
Electronic
Camera shutter speed
1/5 - 1/12000 s
Camera pan control
Yes
Camera tilt control
Yes
Lens viewing angle, horizontal
101.4°
Lens viewing angle, vertical
53.6°
Lens viewing angle, diagonal
120.7°
Image sensor
Number of effective pixels (H x V)
3864 x 2180 pixels
Sensor type
CMOS
Optical sensor size
25.4 / 1.8 mm (1 / 1.8")
Effective sensor resolution
8 pixels
Lens system
Maximum aperture number
2.65
Observe distance
25.1 m
Identify distance
0.5 m
Recognize distance (wide)
12.6 m
Recognize distance (tele)
36.6 m
Observe distance (wide)
25.1 m
Observe distance (tele)
73.3 m
Identify distance (wide)
6.3 m
Identify distance (tele)
18.3 m
Detect distance (wide)
62.9 m
Detect distance (tele)
183 m
Focus
Motorized
Zoom capability
Yes
Optical zoom
2.2x
Focal length range
4.5 - 10 mm
Night vision
Night vision
Yes
LED type
IR
Video
Noise reduction
Yes
Privacy masking
Yes
Image stabilizer
Yes
Back Light Compensation (BLC)
Yes
Maximum resolution
3840 x 2160 pixels
Video formats supported
H.264, H.265
Supported graphics resolutions
640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3840 x 2160
Frame rate
30 fps
Video streaming
Yes
Total megapixels
8 MP
Video intelligence analytic
Yes
Audio
Sample rate
8 kHz
Signal-to-Noise Ratio (SNR)
120 dB
Audio formats supported
AAC-LC, ADPCM, G.711, G.711 ?-law, G.726, IMA-ADPCM
Audio detection
Yes
Network
Networking standards
IEEE 802.3at
Quality of Service (QoS) support
Yes
Number of users
20 user(s)
Streaming method
Multicast
Ethernet LAN
Yes
Supported network protocols
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/ v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Storage
Maximum memory card size
512 GB
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal memory
4096 MB
Flash memory
512 MB
Ports & interfaces
USB port
Yes
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Composite video out
1
Connectivity technology
Wired & Wireless
Security
Alert notification type
E-mail
Video motion detection
Yes
Security algorithms
EAP-LEAP, EAP-TLS, HTTPS, SSL/TLS
IP address filtering
Yes
HTTPS encryption
Yes
Mirror
Yes
Anti-flicker
Yes
Management features
Web browser
Yes
Web-based management
Yes
Power
Power source type
DC, PoE
Power consumption (max)
17.7 W
Power consumption (Power over Ethernet (PoE))
16 W
Power consumption (typical)
14 W
Power consumption
50 mA
DC-in jack
Yes
DC output voltage
12
Operational conditions
Operating temperature (T-T)
-10 - 55 °C
Storage temperature (T-T)
-50 - 60 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 90%
System requirements
Windows operating systems supported
Windows 10, Windows 8.1
Mac operating systems supported
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Weight & dimensions
Width
163 mm
Diameter
20.5 cm
Weight
1.95 kg
Packaging content
Number of cameras
1
Other features
Focus
Motorized
Hanwha PND-A9081RV security camera Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling
