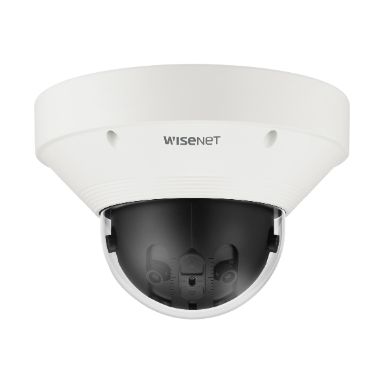

Hanwha PNM-9022V security camera Dome IP security camera Indoor & outdoor 4096 x 1800 pixels Ceiling
In Stock
|
$1095.24
$1314.29 (Inc. VAT)
Performance
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Indoor & outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
Design
IK code
IK10
Form factor
Dome
Product colour
White
Mounting type
Ceiling
Protection features
Vandal proof
International Protection (IP) code
IP66
Housing material
Aluminium
Camera
Minimum illumination
0.01 lx
Tilt angle range
0 - 60°
Pan range
0 - 355°
White balance
ATW, AWC, Indoor, Manual, Outdoor
Lens viewing angle, horizontal
209°
Lens viewing angle, vertical
83.3°
Progressive scan
Yes
Image sensor
Number of effective pixels (H x V)
4096 x 1800 pixels
Progressive scan
Yes
Lens system
Maximum aperture number
2
Focus
Manual
Fixed focal length
2.8 mm
Night vision
Night vision
Yes
Video
Noise reduction
Yes
Privacy masking
Yes
Flip & mirror
Yes
Gain control type
Auto/Manual
Highlight Compensation (HLC)
Yes
Back Light Compensation (BLC)
Yes
Video compression formats
H.264, H.265, M-JPEG, MPEG4
Maximum resolution
4096 x 1800 pixels
Frame rate
30 fps
Video streaming
Yes
Total megapixels
2 MP
Audio
Voice codecs
G.711, G.711u, G.726
Audio detection
Yes
Network
Bluetooth
No
Ethernet interface type
Gigabit Ethernet
Networking standards
IEEE 802.3at
Number of users
20 user(s)
Streaming method
Multicast, Unicast
Ethernet LAN
Yes
Wi-Fi
No
Supported network protocols
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Storage
Maximum memory card size
1.02 TB
Card reader integrated
Yes
Compatible memory cards
SD, SDHC, SDXC
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Video motion detection
Yes
IP address filtering
Yes
Power
Power source type
PoE
Operational conditions
Operating temperature (T-T)
-40 - 55 °C
Storage temperature (T-T)
-40 - 60 °C
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.9 Mavericks
Weight & dimensions
Height
165 mm
Diameter
25.3 cm
Weight
3.2 kg
Packaging content
Number of cameras
1
Other features
Focus
Manual
Video compression formats
H.264, H.265, M-JPEG, MPEG4
Hanwha PNM-9022V security camera Dome IP security camera Indoor & outdoor 4096 x 1800 pixels Ceiling
