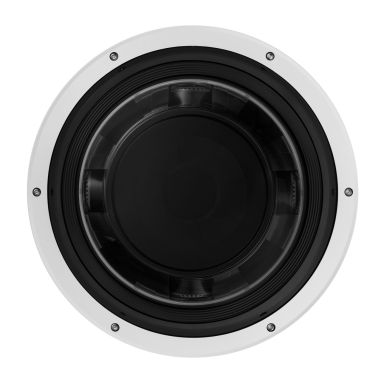

Hanwha PNM-9085RQZ1 security camera Dome IP security camera Outdoor 2616 x 1976 pixels Ceiling

Infrared (IR) cut-off filter

Yes

PTZ modes

Preset point

Type

IP security camera

Connectivity technology

Wired

PTZ control

Yes

Placement supported

Outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Alarm input/output

Yes

IK code

IK10

Form factor

Dome

Product colour

White

Mounting type

Ceiling

International Protection (IP) code

IP66

Housing material

Aluminium

Minimum illumination

0.11 lx

Tilt angle range

Pan range

White balance

ATW, AWC, Indoor, Manual, Outdoor

Angle of rotation

Camera shutter type

Electronic

Camera shutter speed

2 - 1/12000 s

Camera pan control

Yes

Camera tilt control

Yes

Lens viewing angle, horizontal

Lens viewing angle, vertical

Lens viewing angle, diagonal

Sensor type

CMOS

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Number of sensors

1

Number of lenses

1

Maximum aperture number

2.67

Closest focusing distance

1.2 m

Minimum aperture number

1.92

Focus

Motorized

Zoom capability

Yes

Optical zoom

2.3x

Focal length range

4.13 - 9.4 mm

Night vision

Yes

Night vision distance

30 m

LED type

IR

Noise reduction

Yes

Privacy masking

Yes

Flip & mirror

Yes

Image stabilizer

Yes

Highlight Compensation (HLC)

Yes

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Back Light Compensation (BLC)

Yes

Video compression formats

H.264, H.265

Maximum resolution

2616 x 1976 pixels

Supported graphics resolutions

320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1440, 2560 x 1920

Frame rate

30 fps

Video streaming

Yes

Total megapixels

5 MP

Video intelligence analytic

Yes

Voice codecs

G.711, G.711ulaw, G.726

Audio formats supported

AAC-LC, ADPCM

Bluetooth

No

Ethernet interface type

Gigabit Ethernet

Networking standards

IEEE 802.1x

Quality of Service (QoS) support

Yes

Number of users

20 user(s)

Streaming method

Multicast, Unicast

Ethernet LAN

Yes

Wi-Fi

No

Supported network protocols

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP

Maximum memory card size

1 TB

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Flash memory

1250 MB

RAM capacity

5000 MB

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Video motion detection

Yes

Security algorithms

EAP-LEAP, EAP-TLS

IP address filtering

Yes

Anti-flicker

Yes

Power source type

DC, PoE

Power consumption (max)

45 W

Power consumption (Power over Ethernet (PoE))

45 W

Power consumption (typical)

33.7 W

DC output voltage

12

Operating temperature (T-T)

Storage temperature (T-T)

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 90%

Height

145.9 mm

Diameter

31.5 cm

Weight

5.2 kg

Number of cameras

1

Focus

Motorized

Video compression formats

H.264, H.265
