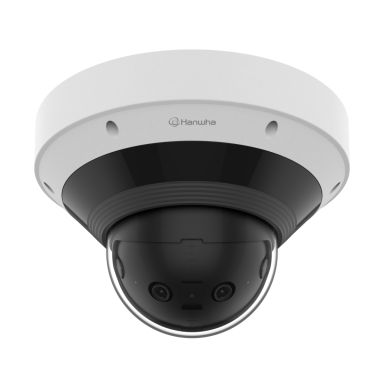

Hanwha PNM-C9022RV security camera Dome IP security camera Indoor & outdoor 5120 x 1568 pixels Ceiling
In Stock
|
$1183.69
$1420.43 (Inc. VAT)
Performance
Languages support
Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Turkish
Type
IP security camera
Connectivity technology
Wired
Placement supported
Indoor & outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
Certification
EMC:
FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety:
UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment:
IEC/EN 63000
IEC/EN 60529 IP66, IEC/EN 62262 IK10
NEMA 250 type 4X
Design
IK code
IK10
Form factor
Dome
Product colour
White
Mounting type
Ceiling
International Protection (IP) code
IP66
Housing material
Aluminium
Camera
Tilt angle range
0 - 65°
Pan range
0 - 360°
White balance
ATW, AWC, Indoor, Manual, Outdoor
Camera shutter type
Electronic
Camera shutter speed
2~1/12000 s
Camera pan control
Yes
Camera tilt control
Yes
Lens viewing angle, horizontal
209°
Lens viewing angle, vertical
60°
Image sensor
Sensor type
CMOS
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
2
Detect distance
52.2 m
Observe distance
20.9 m
Recognize distance
10.4 m
Identify distance
5.2 m
Fixed focus
Yes
Focal length range
2.8 mm
Fixed focal length
2.8 mm
Night vision
Night vision
Yes
LED type
IR
Video
Noise reduction
Yes
Privacy masking
Yes
Flip & mirror
Yes
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Back Light Compensation (BLC)
Yes
Noise reduction technology
Smart Super Noise Reduction V (SSNR V), WiseNR ?
Video compression formats
H.264, H.265, M-JPEG
Maximum resolution
5120 x 1568 pixels
Supported graphics resolutions
1280 x 392, 2560 x 784, 3648 x 1152, 5120 x 1568
Frame rate
20 fps
Video streaming
Yes
Total megapixels
8 MP
Audio
Audio input channels
2 channels
Audio output channels
1 channels
Audio formats supported
AAC-LC, G.711, G.711 ?-law, G.726
Network
Bluetooth
No
Ethernet interface type
Gigabit Ethernet
Quality of Service (QoS) support
Yes
Number of users
20 user(s)
Streaming method
Multicast, Unicast
Ethernet LAN
Yes
Wi-Fi
No
Supported network protocols
IPv4, IPv6
Live view
Yes
Storage
Maximum memory card size
512 GB
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash), SDHC, SDXC
Flash memory
512 MB
RAM capacity
4000 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Alert notification type
E-mail
Video motion detection
Yes
Security algorithms
EAP-LEAP, EAP-PEAP, EAP-TLS, HTTPS, MSCHAPv2
IP address filtering
Yes
Mirror
Yes
Anti-flicker
Yes
Digest authentication
Yes
Network access storage (NAS)
Yes
Management features
Remotely operated
Yes
Power
Power source type
DC, PoE
Power consumption (max)
11.3 W
Power consumption (Power over Ethernet (PoE))
11.3 W
Power consumption (typical)
10.4 W
DC output voltage
12
Certificates
Certification
EMC:
FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety:
UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment:
IEC/EN 63000
IEC/EN 60529 IP66, IEC/EN 62262 IK10
NEMA 250 type 4X
Operational conditions
Operating temperature (T-T)
-40 - 55 °C
Storage temperature (T-T)
-30 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 90%
Weight & dimensions
Height
170 mm
Diameter
25.3 cm
Weight
2.9 kg
Packaging content
Number of cameras
1
Other features
Video compression formats
H.264, H.265, M-JPEG
Hanwha PNM-C9022RV security camera Dome IP security camera Indoor & outdoor 5120 x 1568 pixels Ceiling
