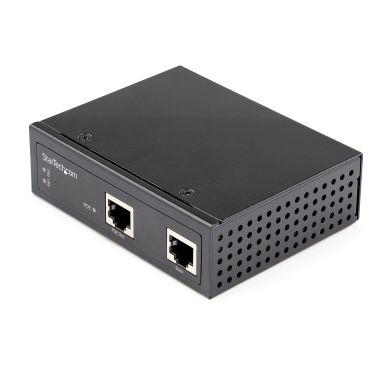

StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 48V-56VDC D
In Stock
|
$228.73
$274.48 (Inc. VAT)
Performance
Jumbo frames support
Yes
Duplex system
Full
International Protection (IP) code
IP30
Ethernet LAN data rates
10,100,1000 Mbit/s
Type
Network repeater
Maximum transfer distance
100 m
Power over Ethernet (PoE)
Yes
Data transfer rate
1000 Mbit/s
Chipset
Microsemi PD69204
Mean time between failures (MTBF)
540891 h
Auto MDIX IEEE
Yes
Auto-negotiation
Yes
Technical details
Jumbo frames support
Yes
Duplex system
Full
International Protection (IP) code
IP30
Ethernet LAN data rates
10,100,1000 Mbit/s
LED indicators
Yes
Type
Network repeater
Maximum transfer distance
100 m
Power over Ethernet (PoE)
Yes
Data transfer rate
1000 Mbit/s
Chipset
Microsemi PD69204
Auto MDIX IEEE
Yes
Auto-negotiation
Yes
Sustainability certificates
CE, RoHS
Harmonized System (HS) code
85176990
Compliance certificates
CE, RoHS
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Ports & interfaces
Power over Ethernet (PoE) ports quantity
2
Terminal block port
Yes
Design
Housing material
Aluminium
LED indicators
Yes
Certification
CE, FCC, UL
Product colour
Black
Power
Power plug type
Type N
Power over Ethernet (PoE) voltage range
48 - 56 V
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
90 W
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
32 mm
Depth
82 mm
Height
104 mm
Weight
174 g
Colour
Product colour
Black
Endurance
Mean time between failures (MTBF)
540891 h
Certificates
Certification
CE, FCC, UL
Management features
Supported network protocols (IPv4)
CSMA/CD
Packaging content
Quick start guide
Yes
Packaging data
Package width
211 mm
Package depth
162 mm
Package height
64 mm
Package weight
416 g
Logistics data
Master (outer) case width
355 mm
Master (outer) case length
345 mm
Master (outer) case height
225 mm
Products per master (outer) case
10 pc(s)
Harmonized System (HS) code
85176990
StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 48V-56VDC D
