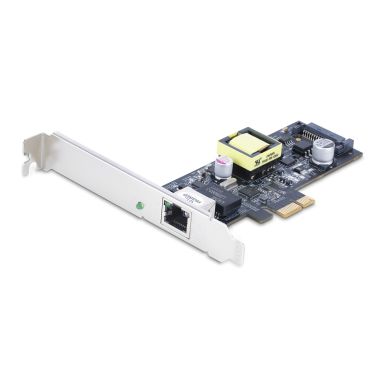

StarTech.com 1-Port 2.5Gbps NBASE-T PoE Network Card, Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, SATA Powered Desktop Ethernet Interface - Supports Windows, Linux, VMware ESXI
In Stock
|
$111.88
$134.26 (Inc. VAT)
Ports & interfaces
Number of SATA power connectors
1
Internal
Yes
PCI version
2.0
Power over Ethernet (PoE) ports quantity
1
Ethernet LAN (RJ-45) ports
1
Interface
Ethernet
Host interface
PCI Express
Connectivity technology
Wired
Bandwidth
Maximum data transfer rate
2500 Mbit/s
Network
Chipset
Intel I225-V
Quality of Service (QoS) support
Yes
Networking standards
IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Wake-on-LAN ready
Yes
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Maximum data transfer rate
2500 Mbit/s
Antenna
Quality of Service (QoS) support
Yes
Technical details
Quality of Service (QoS) support
Yes
Product colour
Black
Wake-on-LAN ready
Yes
Sustainability compliance
Yes
Sustainability certificates
RoHS
Compliance certificates
RoHS
Design
Product colour
Black
Chipset
Intel I225-V
Internal
Yes
LED indicators
Yes
Component for
PC/Server
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported
Yes
Other operating systems supported
VMware vSphere ESXi
Power
Output voltage
48 V
Indication
LED indicators
Yes
System requirements
Server operating systems supported
Windows Server 2019, Windows Server 2022
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported
Yes
Other operating systems supported
VMware vSphere ESXi
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Sustainability
Sustainability compliance
Yes
Sustainability certificates
RoHS
Weight & dimensions
Width
54 mm
Depth
119 mm
Height
16 mm
Weight
62 g
Package width
142 mm
Package depth
170 mm
Package height
30 mm
Package weight
70 g
Packaging data
Package width
142 mm
Package depth
170 mm
Package height
30 mm
Package weight
70 g
Quick installation guide
Yes
Packaging content
Quick installation guide
Yes
Performance
Server operating systems supported
Windows Server 2019, Windows Server 2022
Wake-on-LAN ready
Yes
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported
Yes
Other operating systems supported
VMware vSphere ESXi
Other features
Chipset
Intel I225-V
Number of SATA power connectors
1
StarTech.com 1-Port 2.5Gbps NBASE-T PoE Network Card, Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, SATA Powered Desktop Ethernet Interface - Supports Windows, Linux, VMware ESXI
