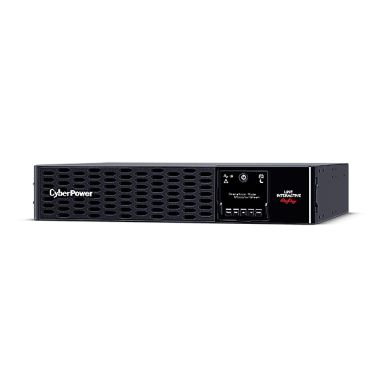

CyberPower PR2200ERTXL2U uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W 8 AC out
In Stock
|
£754.83
£905.80 (Inc. VAT)
get it next day (UK Mainland Orders)
CyberPower PR2200ERTXL2U uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W 8 AC out
Write Your Own Review
Power
Output power
2200 W
Input operation voltage (min)
159 V
Input operation voltage (max)
288 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
2430 J
Maximum current
16 A
Output power capacity
2.2 kVA
Power Factor Correction (PFC) type
Active
Ports & interfaces
Cable length
2.4 m
Emergency Power Off (EPO) connector
Yes
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
2
Performance
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Pure sine
Automatic Voltage Regulation (AVR)
Yes
Number of input phases
1
Response time
4 ms
LED indicators
Error, Operation
EMI/RFI noise filtering
Yes
Surge protection
Yes
Power protection features
Overload
Noise level
57.5 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Management protocols
SNMP/HTTP
Country of origin
China
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Pure sine
Automatic Voltage Regulation (AVR)
Yes
Number of input phases
1
Response time
4 ms
Output power
2200 W
Input operation voltage (min)
159 V
Input operation voltage (max)
288 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
2430 J
Maximum current
16 A
EMI/RFI noise filtering
Yes
Surge protection
Yes
Power protection features
Overload
Noise level
57.5 dB
Audible alarm(s)
Yes
Output power capacity
2.2 kVA
Power Factor Correction (PFC) type
Active
Input frequency
50/60 Hz
Battery
Number of batteries supported
4
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
11.2 min
Typical backup time at full load
3.2 min
Hot-swap battery
Yes
Design
Country of origin
China
Rack capacity
2U
Form factor
Rackmount/Tower
LED indicators
Error, Operation
Product colour
Black
Certification
CE , FCC Class B , UL , RCM , VCCI
Cable length
2.4 m
Housing material
Metal
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Output frequency
50/60 Hz
Bypass
GreenPower UPS
Sustainability certificates
ENERGY STAR
Harmonized System (HS) code
8504408590
Compliance certificates
RoHS
Management features
Management protocols
SNMP/HTTP
Weight & dimensions
Package width
560 mm
Package depth
620 mm
Package height
275 mm
Weight
34.4 kg
Width
433 mm
Package weight
42.5 kg
Height
86.5 mm
Depth
500 mm
Packaging data
Cables included
Serial, USB cable
Package width
560 mm
Package depth
620 mm
Package height
275 mm
Package weight
42.5 kg
Logistics data
Harmonized System (HS) code
8504408590
Certificates
Certification
CE , FCC Class B , UL , RCM , VCCI
Other features
Bypass
GreenPower UPS
Packaging content
Cables included
Serial, USB cable
| Length | 62 cm |
| Width | 56 cm |
| Height | 27.5 cm |
| Weight | 42.25 kgs |
