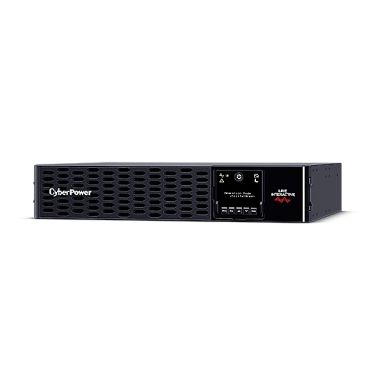

CyberPower PR3000ERTXL2U uninterruptible power supply (UPS) Line-Interactive 3000 VA 3000 W 8 AC outlet(s)
In Stock
|
Call For Price (0808 189 1246)
Power
Output power
3000 W
Input operation voltage (min)
159 V
Input operation voltage (max)
288 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
2430 J
Maximum current
16 A
Power factor
1
Output power capacity
3 kVA
Power Factor Correction (PFC) type
Active
Ports & interfaces
Cable length
2.4 m
Socket circuit breaker
Yes
Emergency Power Off (EPO) connector
Yes
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
Cabling technology
10/100/1000Base-T(X)
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
Ethernet LAN (RJ-45) ports
2
Performance
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Pure sine
Automatic Voltage Regulation (AVR)
Yes
Number of input phases
1
Response time
4 ms
LED indicators
Error, Operation
EMI/RFI noise filtering
Yes
Surge protection
Yes
Power protection features
Overload, Short circuit
Audible alarm(s)
Yes
Transfer time (Line Mode to Battery Mode)
4 ms
Features
Output frequency
50/60 Hz
Web-based management
Yes
Management protocols
SNMP/HTTP
Country of origin
China
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Pure sine
Automatic Voltage Regulation (AVR)
Yes
Number of input phases
1
Response time
4 ms
Output power
3000 W
Input operation voltage (min)
159 V
Input operation voltage (max)
288 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
2430 J
Maximum current
16 A
EMI/RFI noise filtering
Yes
Surge protection
Yes
Power protection features
Overload, Short circuit
Power factor
1
Audible alarm(s)
Yes
Output power capacity
3 kVA
Power Factor Correction (PFC) type
Active
Socket circuit breaker
Yes
Transfer time (Line Mode to Battery Mode)
4 ms
Input frequency
50/60 Hz
Battery
Number of batteries supported
4
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
7.1 min
Typical backup time at full load
1.7 min
Hot-swap battery
Yes
Replacement battery cartridge
RBP0129
Design
Country of origin
China
Rack capacity
2U
Form factor
Rackmount/Tower
LED indicators
Error, Operation
Product colour
Black
Certification
CE , FCC Class A , UL , CISPR 22 Class A , IEC62040-2 , RCM , VCCI , EN 61000-3-2
Cable length
2.4 m
Housing material
Metal
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Output frequency
50/60 Hz
Bypass
GreenPower UPS
Sustainability certificates
ENERGY STAR
Harmonized System (HS) code
8504408590
Compliance certificates
RoHS
Management features
Web-based management
Yes
Management protocols
SNMP/HTTP
Weight & dimensions
Package width
560 mm
Package depth
620 mm
Package height
275 mm
Weight
32.8 kg
Width
433 mm
Package weight
41 kg
Height
86.5 mm
Depth
500 mm
Package volume
40800 cm³
Packaging data
Package volume
40800 cm³
Package width
560 mm
Package depth
620 mm
Package height
275 mm
Package weight
41 kg
Logistics data
Harmonized System (HS) code
8504408590
Certificates
Certification
CE , FCC Class A , UL , CISPR 22 Class A , IEC62040-2 , RCM , VCCI , EN 61000-3-2
Other features
Bypass
GreenPower UPS
CyberPower PR3000ERTXL2U uninterruptible power supply (UPS) Line-Interactive 3000 VA 3000 W 8 AC outlet(s)
| Length | 50.00 cm |
| Width | 43.30 cm |
| Height | 8.65 cm |
| Weight | 39.17 kgs |
